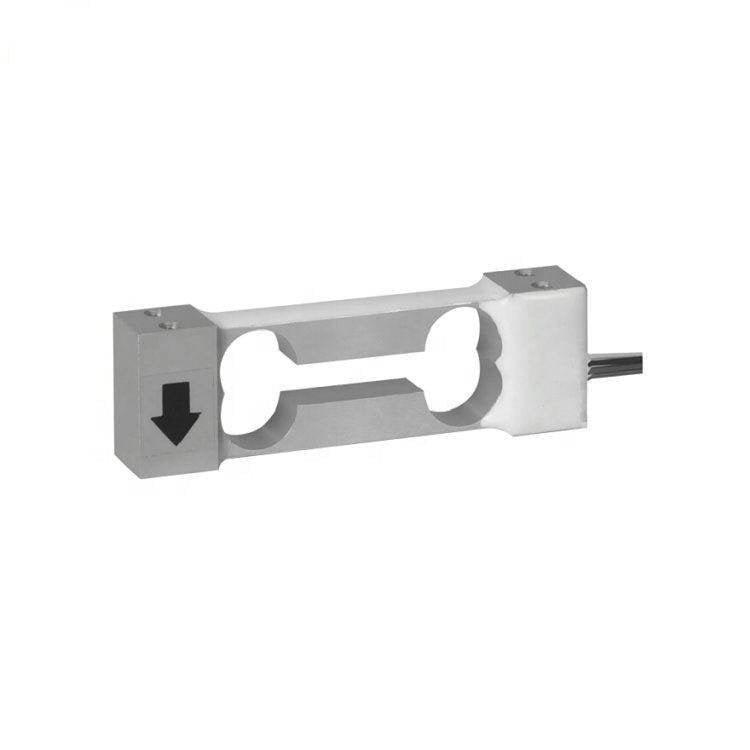

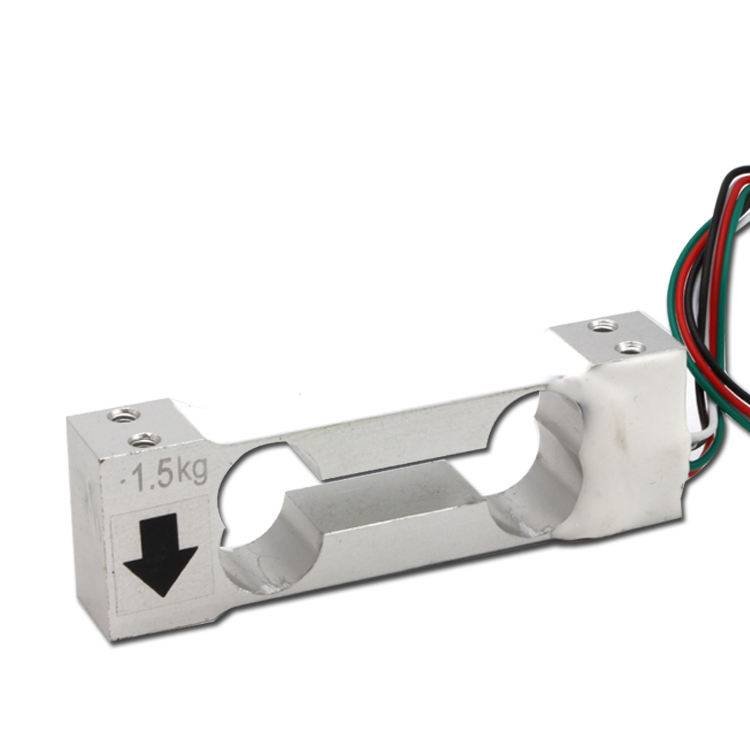

WST205 model single point load cell, It is normally used on electronic balance, Egg sorting machine these high accuracy scale or machine.
| Rated Load | 0.3,0.6,1.5,3,6(kg) | ||
| Accuracy Class | C3 | Compensated Temp.Range | -10～+40℃ |
| Comprehensive Error | ±0.02%F.S | Operating Temp.Range | -20～+60℃ |
| Rated Output | 1.0±0.1mV/V(≤1kg) 2.0±0.2mV/V(>1kg) |
Excitation,Recommended |
5～12VDC |
| Zero Balance | ±5.0%F.S | Excitation,Maximum | 18VDC |
| Linearity Error | ±0.02%F.S | Safe Overload | 150%F.S |
| Repeatability Error | ±0.015%F.S | UItimate Overload | 200%F.S |
| Hysteresis Error | ±0.015%F.S | Insulation Resistance | ≥2000MΩ(50VDC) |
| Creep | ±0.03%F.S/30min | Cable | 4 Color PVC Wires |
| Input Resistance | 395±10Ω | Cable Length | 1 . 0 × 2 0 0 m m |
| Output Resistance | 350±3Ω | Ingress Protection | IP65 |
| Temp.Effect on Output | ±0.03%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Temp.Effect on Zero | ±0.05%F.S/10℃ | Sig+:Green Sig-:White | |
