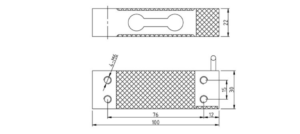

WST208 model size of 100*30*22mm, The material of aluminium alloy, surface anodic oxidation treatment, Weight range:3-100kg, Application: Platform scale,Price computing scales, kitchen scale and other smart products.
| Rated Load | 3,5,6,10,15,20,30,40,50,60,100(kg) | ||
| Accuracy Class | C2 | Operation Temp.Range | -10～+40℃ |
| Comprehensive Error | ±0.03%F.S | Excitation,Recommended | 9～12VDC |
| Rated Output | 2.0±0.2mV/V | Safe Overload | 120%F.S |
| Zero Balance | ±3.0%F.S | Ultimate Overload | 150%F.S |
| Input Resistance | 405±6Ω | Insulation Resistance | ≥5000MΩ(100VDC) |
| Output Resistance | 350±3Ω | Cable | 4-Wire Shielded Cable |
| Linearity Error | ±0.03%F.S | Cable Length | φ4×400mm |
| Repeatability Error | ±0.03%F.S | Ingress Protection | IP65 |
| Hysteresis Error | ±0.03%F.S | Wiring Code | Exc+:Red Exc-:Black |
| Creep | 0.03%F.S/30min | Sig+:Green Sig-:White | |
