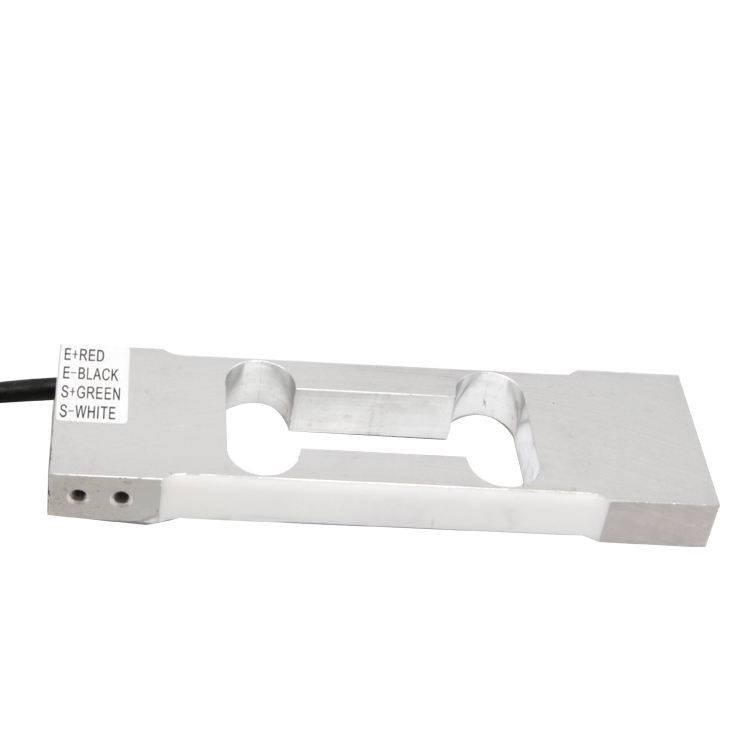

WST209 model single point load cell, Normally used for laboratory balance or Electronic Balance, It has high accuracy and stable performance. The size of

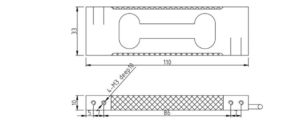

Size:110*33*10mm,Weight range:0.3-3kg.
| Rated Load | 0.3,0.6,1,1.5,3(kg) |
||
| Accuracy Class | C3 | Compensated Temp.Rang | e -10～+40℃ |
| Comprehensive Error | ±0.02%F.S | Operating Temp.Range | -20～+60℃ |
Rated Output |
1.0±0.1mV/V | Excitation,Recommended | 5～12VDC |
| Zero Balance | ±5%F.S | Excitation,Maximum | 18VDC |
| Linearity Error | ±0.02%F.S | Safe Overload | 150%F.S |
Repeatability Error |
±0.015%F.S | Ultimate Overload | 200%F.S |
| Hysteresis Error | ±0.015%F.S | Insulation Resistance | ≥2000MΩ(50VDC) |
| Creep | 0.03%F.S/30min | Cable | 4-Wire Shielded Cable |
| Input Resistance | 405±10Ω | Cable Length | φ4×250mm |
| Output Resistance | 350±3Ω | Ingress Protection | IP65 |
| Temp.Effect on Output | 0.03%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Temp.Effect on Zero | 0.05%/F.S10℃ | Sig+:Green Sig-:White | |
