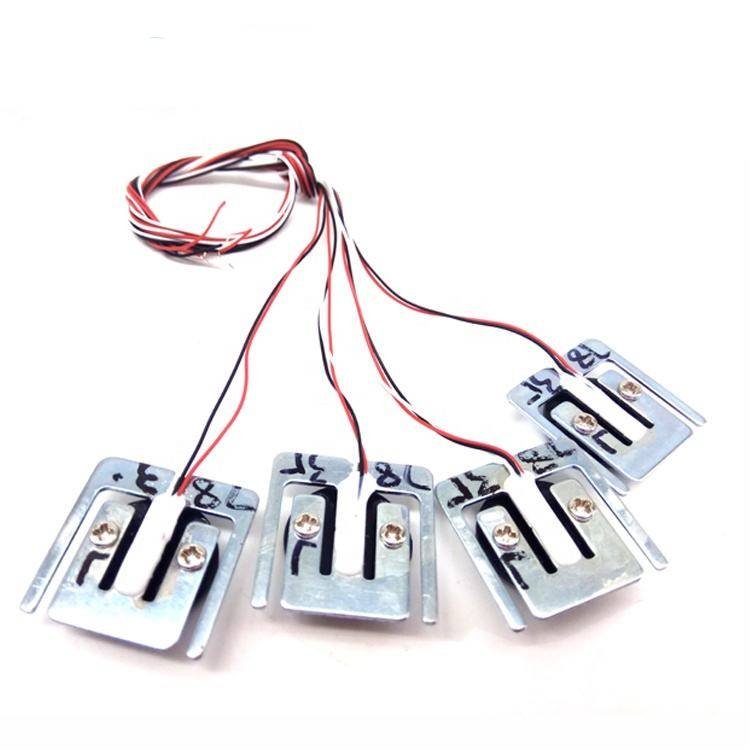

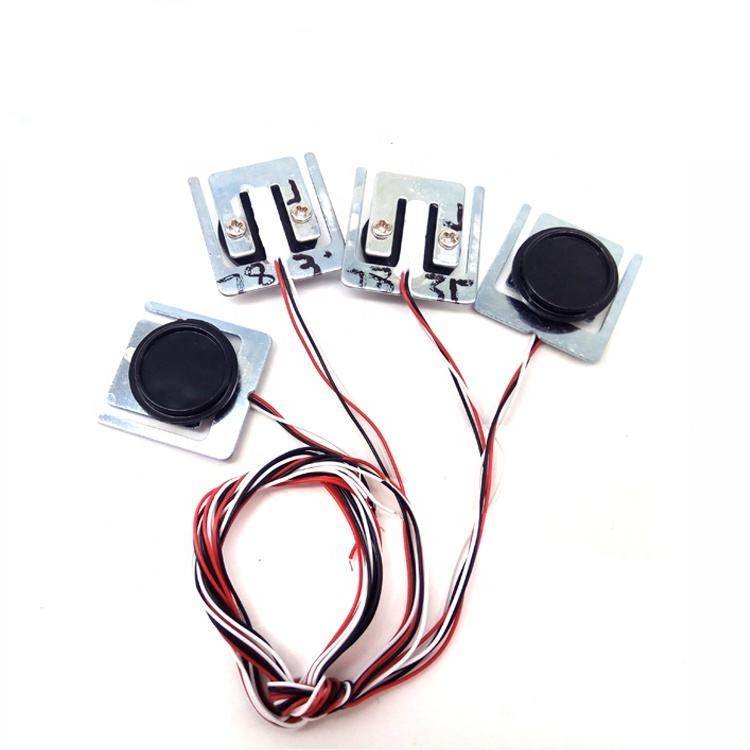

WST104 is small capacity half bridge load cell, It normally 4pcs work together to constitute full bridge. It is very thin, Each one of 3kg capacity. This load cell mainly used for kitch scale, price scale, small weighing scale, force test equipment.
| Rated Load | 3,5,7.5(kg) | ||
| Comprehensive Error | ±0.1%F.S | Operating Temp.Range | -10～+40℃ |
| Rated Output | 0.8~1.0±0.15mV/V | Excitation,Recommended | 5VDC |
| Zero Balance | ±0.6mV/V | Excitation,Maximum | 3～10VDC |
| Linearity Error | ±0.1%F.S | Safe Overload | 120%F.S |
| Repeatability Error | ±0.05%F.S | Ultimate Overload | 150%F.S |
| Hysteresis Error | ±0.05%F.S | Insulation Resistance | ≥2000MΩ(50VDC) |
| Creep | ±0.05%F.S/3min | Cable | 3 Color PVC Wires |
| Input Resistance | 500±10Ω | Cable Length | φ0.6×200mm |
| Output Resistance | 500±10Ω | Ingress Protection | IP65 |
| Temp.Effect on Span | ±0.1%F.S/10℃ | Four-angle Error | 1.0%F.S |
| Temp.Effect on Zero | ±0.1%F.S/10℃ | Wiring Code | Common:Red;S+:Black;S-:White |
