The WST101 is a micro load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

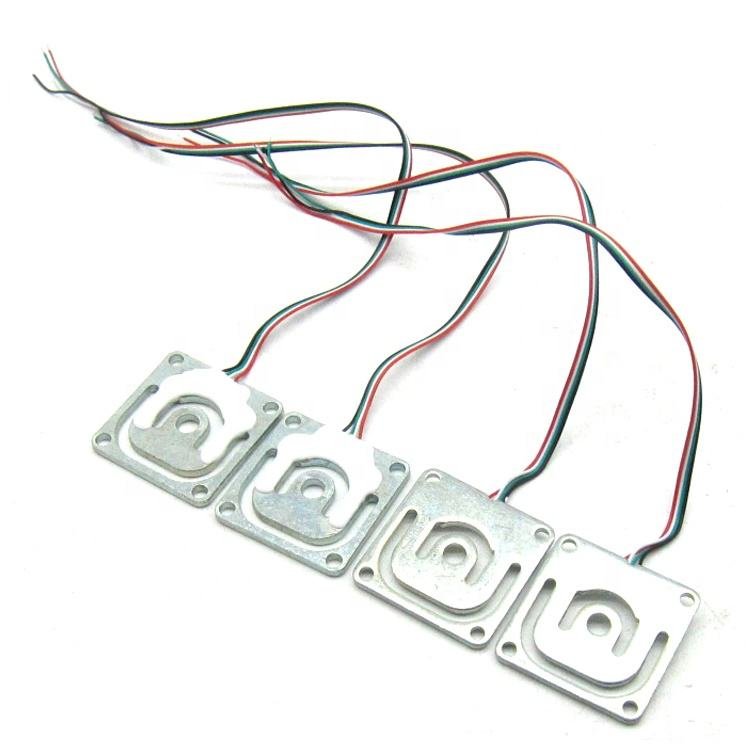

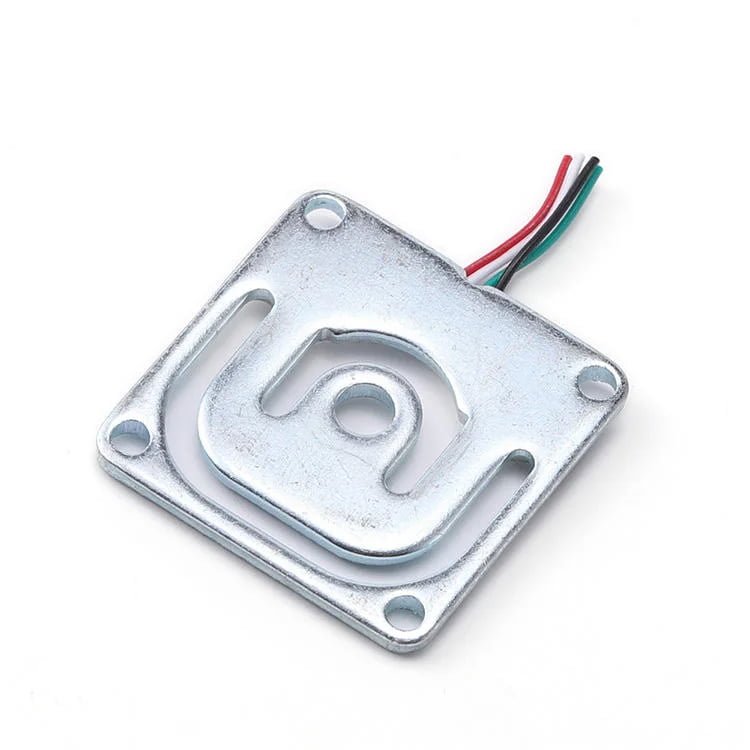

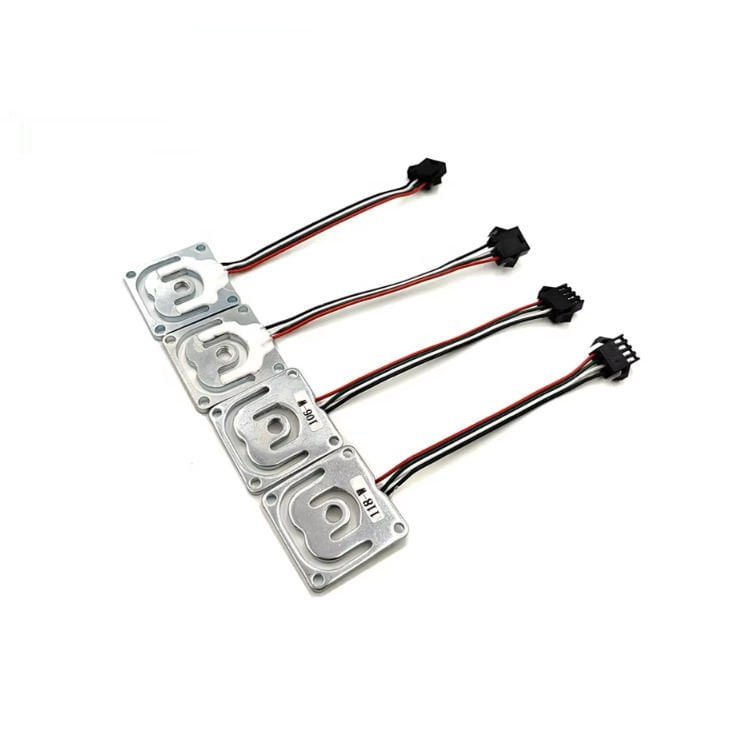

WST101 flat type micro load cell, which is a specialized electronic sensor designed to measure force or weight in compact devices. This specific component features a metal plate with a unique cutout pattern that allows for slight deformation under pressure. Attached to the hardware are four colored wires—typically red, black, white, and green—which transmit electrical signals to a controller or display. Its square frame includes mounting holes at each corner, suggesting it is intended for integration into digital scales or portable weighing equipment. By converting mechanical stress into a measurable voltage change, this small part serves as the critical interface between physical mass and digital data.
Complete technical parameters, as delivered from the factory.

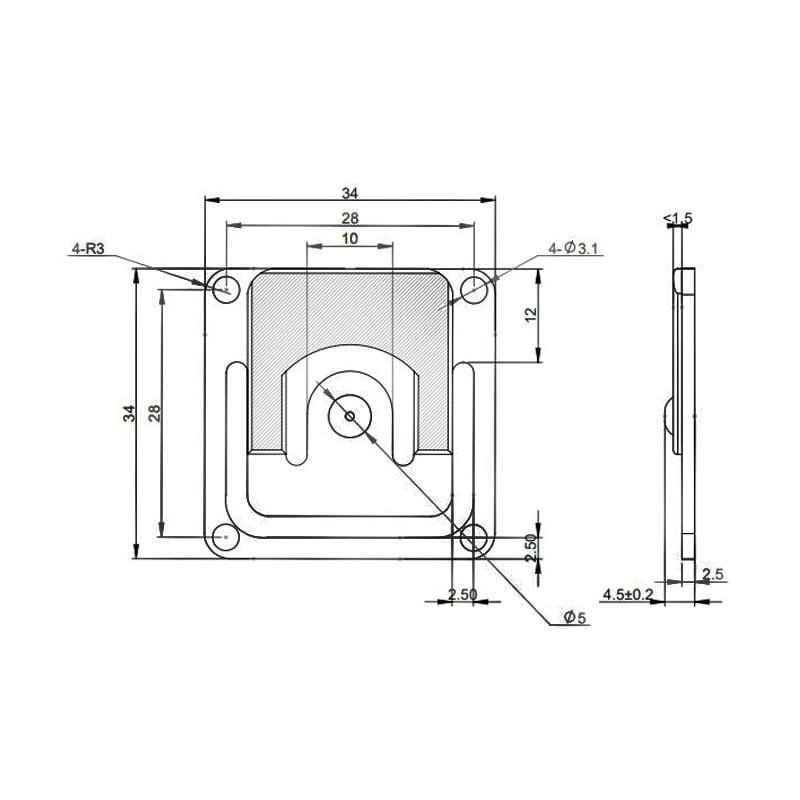

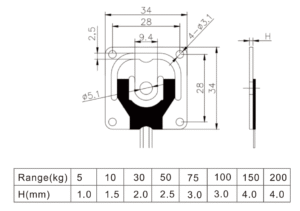

| WST101 Technical Specifications | |||
|---|---|---|---|
| Material | Alloy steel | Rated Load | 5kg, 10kg, 30kg, 50kg, 100kg, 200kg |
| Dimensions | 34*34*H(mm) | Application | Digital Bathroom Scales, Kitchen and Postal Scales, Medical Equipment, Industrial Automation, Robotics |
| Accuracy Class | 0.05% F·S | Zero Balance | ±0.3mv/V |
| Output sensitivity | 1.0±0.2mV/V | Linearity | 0.05% F·S |
| Repeatability | 0.05% F·S | Hysteresis Error | 0.05% F·S |
| Creep | 0.05% F·S /3min | Temp. effect on span | ±0.1% F·S /10℃ |
| Temp. Effect on Zero | ±0.1% F·S /10℃ | Insulation Resistance | ≥2000MΩ |
| Excitation, Recommended | 5~10VDC | Operating Temp. Range | -10~+40℃ |
| Connecting cable | Φ8x200mm | Ultimate Overload | 150% F·S |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
The core sensor in commercial price-computing scales and kitchen scales. Low-profile metal-alloy body accepts off-center loads with little deflection.
Low capacity multiple capacity options
Battery-powered pocket balances, jewellery scales and portable weighing tools fit the WST101 into compact housings without sacrificing stability.
OIML-grade reading
Inline force feedback for medical infusion pumps, laboratory force-test fixtures and small press-in assemblies — anywhere a low-capacity accurate load read is needed.
IP-rated sealed
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST101 | — | This page | Current selection |
| WST112 | 10Kg 20kg 30kg 40kg | Micro load cell | Alternative model in the same class |
| WST111 | 5,10,20,30,40,50(kg) | Micro load cell | Alternative model in the same class |
| WST110 | 100,200,300,500,750(g) | Micro load cell | Alternative model in the same class |
| WST109 | 300,500,750,1000,2000,3000,5000(g) | Micro load cell | Alternative model in the same class |
| WST108 | 20,30,50,100,200(g) | Micro load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST101 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST101 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
Deepen your selection — application guides, accuracy-class comparisons and installation notes written for B2B engineers.
