💡 Key Insight

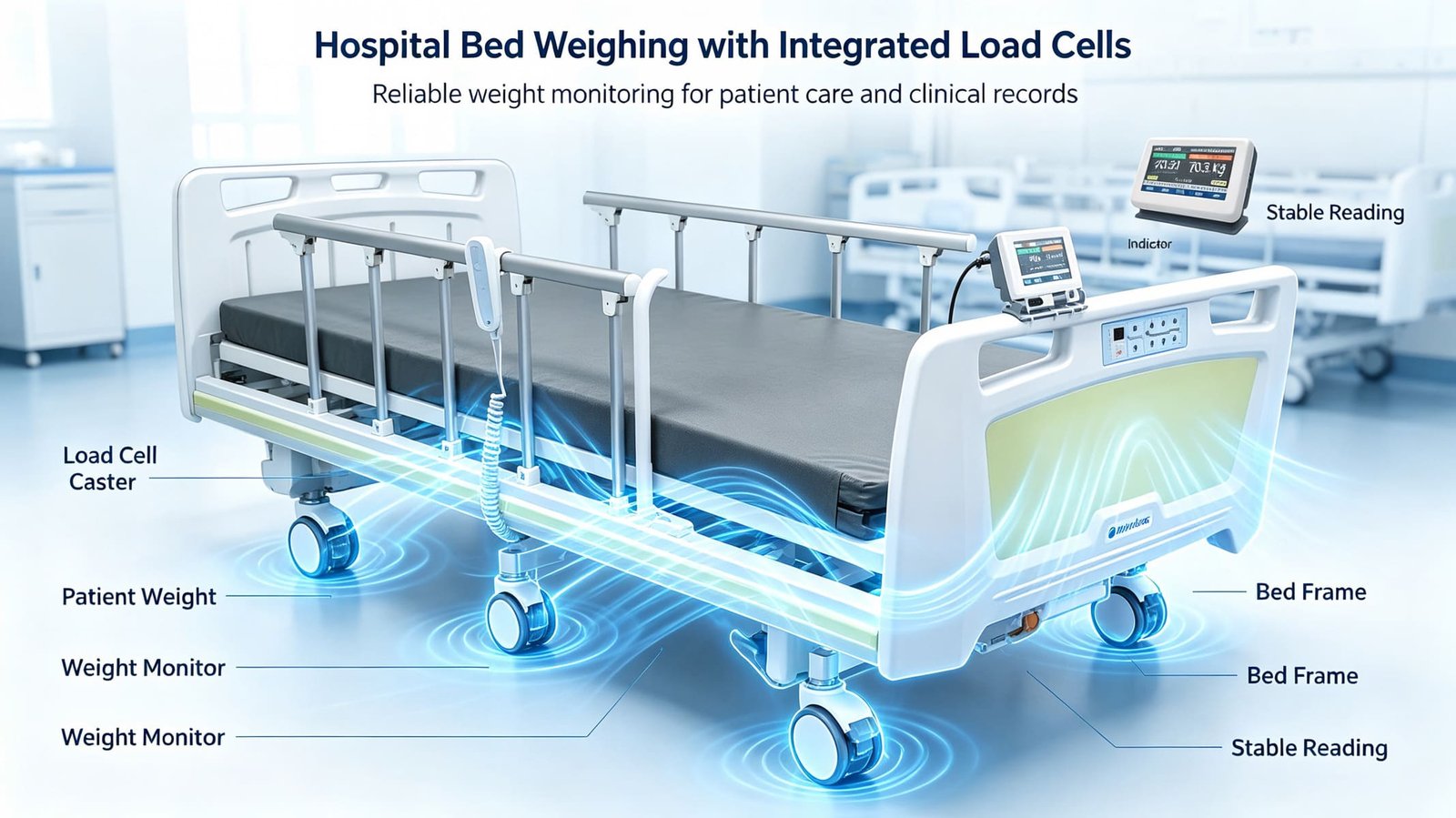

A medical bed weighing system converts the bed frame into a precision scale. Four load cells — one at each support point — measure the total weight, subtract the pre-stored tare (bed frame, mattress, bedding), and display the patient’s net weight in real time. No patient movement required.

• Patient weight range: 10 kg (infant) to 250 kg (bariatric), with the bed tare weight around 120 kg
• Accuracy: ±0.2 kg for adult patients, ±0.1 kg for neonatal applications
• Real-time monitoring: continuous weight display with trend tracking over 24 hours
• Communication: RS485 / Modbus RTU integration with the hospital’s central monitoring system
• Space constraints: the sensors had to fit within the bed’s existing leg structure — maximum height 35 mm
• Medical compliance: the system needed to meet IEC 60601-1 electrical safety standards for medical electrical equipment

📊 Selected Load Cell: WST301 Shear Beam — Key Specifications

Four WST301 shear beam load cells are installed at the bed’s four support points — one at each corner. Each sensor converts the mechanical force (weight) into a proportional electrical signal in millivolts (mV). With a sensitivity of 2.0 mV/V and a 10V excitation, each cell produces 20 mV at full capacity.

The cells mount on custom-designed brackets that bolt to the bed’s leg structure. The mounting interface includes a rocker pin — a small spherical-tipped pin that allows the load cell to self-align as the bed frame flexes slightly under patient movement. This prevents side forces from corrupting the weight signal, which is essential for clinical accuracy.

The junction box is the heart of a multi-sensor system. It serves two functions: summing (combining the mV signals from all four sensors into one output) and corner adjustment (trimming each sensor’s contribution so the same weight gives the same reading regardless of position on the bed).

For Thomas’s project, I selected the WST1513 stainless steel junction box with 4-in/1-out configuration and individual trim potentiometers on each channel. The IP67-rated enclosure protects the electrical connections from the hospital environment — cleaning sprays, humidity, and accidental spills.

The indicator receives the summed signal from the junction box, converts it to a digital weight reading, and displays it. But in Thomas’s application, we needed more than just a number on a screen. We specified the WST1505 weighing indicator because it offered:

• Tare function — stores the bed’s empty weight and subtracts it automatically, showing only patient weight
• RS485 / Modbus RTU — feeds weight data to the hospital’s central monitoring system for trend tracking
• Analog output (4–20mA) — connects to the bed’s built-in control system for integration with other bed functions
• Alarm relays — triggers alerts if weight changes exceed a threshold (e.g., sudden fluid loss or gain)
• 6-digit display — resolution to 0.01 kg for neonatal applications

The indicator was mounted on the bed’s side rail, within easy view of the nursing staff. A single shielded cable connected it to the junction box mounted underneath the bed frame.

⚠️ Critical Wiring Rule

Always ground the cable shield at one point only — at the junction box ground terminal. Grounding at both ends creates a ground loop that picks up electromagnetic interference from the hospital’s many medical devices, causing weight readings to drift or jump. I’ve seen this exact problem cause ±2 kg fluctuations on a system that should have been stable to ±0.1 kg.

Calibration Steps:

1. Zero calibration: With the bed empty (mattress and bedding removed), I pressed the “Zero” key on the indicator. This stored the current sensor output as the zero point.
2. Pre-load (tare): I placed the mattress and standard bedding back on the bed, then pressed “Tare.” This subtracted the bed’s empty weight so the display would show only patient weight.
3. Span calibration with 50 kg weights: I placed two certified 25 kg test weights on the bed center. The indicator showed a raw mV reading. I entered “50.00” as the calibration value, and the indicator calculated the scale factor.
4. Verification with water containers: I added three 20-liter water containers (60 kg total) on the bed. The indicator should read 110.00 kg (50 kg weights + 60 kg water). It read 110.05 kg — within 0.05% accuracy. Acceptable.
5. Mid-range check: I removed the test weights, added more water to reach 150 kg total. The indicator read 150.12 kg. Still within 0.1%.
6. Linearity verification: I checked at three points — 50 kg, 150 kg, and 250 kg — and confirmed the error stayed within ±0.2 kg across the full range.

💡 Pro Tip from the Field

Always verify calibration at multiple weight points, not just one. I’ve seen systems that were perfectly calibrated at 50 kg but drifted by 1 kg at 200 kg due to non-linearity. If your indicator supports multi-point calibration (3 or 5 points), use it — it corrects for slight non-linearity in the load cells.

🔴 Problem 1: Overnight Zero Drift of 1.5 kg

Symptom: After the first night of testing, the empty-bed zero reading had shifted by +1.5 kg. The indicator showed 1.5 kg with nothing on the bed.

Diagnosis: I suspected temperature drift. The prototype lab’s HVAC turned down to 18°C at night, while daytime temperature was 24°C. With a zero temperature drift spec of ±0.02% F.S./10°C, a 6°C swing could cause up to 0.44 kg drift on a 370 kg system. But 1.5 kg was three times that — something else was going on.

I measured the mV output of each sensor individually and found that sensor No. 3 (rear right) was reading 8% higher than the others, even with the bed empty. When I looked underneath, I found the problem: the bed frame had a slight twist, and the mounting bracket for sensor No. 3 was not sitting flat against the frame. One of the four mounting bolts was only finger-tight — it had backed off during bed movement testing.

Solution: I re-tightened all mounting bolts to the specified torque (25 Nm), added thread-locking adhesive to prevent loosening from vibration, and re-shimmed sensor No. 3 to ensure the mounting bracket sat perfectly flat. After re-calibration, overnight drift dropped to under 0.2 kg — within the sensor’s temperature spec.

🔴 Problem 2: Weight Reading Jumped When Backrest Was Raised

Symptom: When the nursing staff raised the electric backrest from flat to 45°, the weight display jumped by 3–4 kg, then slowly settled back over about 30 seconds. This was confusing for nurses and triggered false weight-change alarms.

Diagnosis: When the backrest articulates, it transfers load from the head-end sensors to the foot-end sensors through the bed frame. The mechanical friction in the backrest hinge created a temporary moment that the load cells interpreted as additional weight. The 30-second settling time was the mechanical system slowly equalizing.

Solution: I worked with Thomas’s mechanical team to add a load cell signal averaging filter in the GSI312 indicator. We set the digital filter to a 2-second time constant with a “hold” function — when the indicator detected a rapid rate-of-change (>2 kg/second), it froze the display for 3 seconds, allowing the mechanical system to settle, then showed the new stable weight. This eliminated the false jump entirely. The key insight: not every weight change is a real weight change — some are mechanical artifacts that the indicator software can filter out.

🔴 Problem 3: EMI Interference from Adjacent Medical Equipment

Symptom: In the hospital test ward, the weight display showed random fluctuations of ±0.5 kg when the ventilator next to the bed was running. In the prototype lab, the system was rock-stable.

Diagnosis: The ventilator’s internal motor and switching power supply generated electromagnetic interference (EMI) that coupled into the load cell signal cables. The prototype lab had no medical equipment nearby, so the problem didn’t surface until field testing.

Solution: Three countermeasures, applied together: (1) replaced the standard PVC sensor cables with shielded twisted-pair PUR cables — the shield blocks EMI and the twisted pair rejects magnetic coupling; (2) routed all sensor cables along the inside of the bed frame channel, using the steel frame itself as a shield; (3) added a surge protection module inside the junction box. After these changes, the ventilator-induced fluctuation dropped to ±0.05 kg — clinically negligible.

• Choose shear beam load cells for medical beds — their side-load resistance handles patient movement and bed articulation better than single-point types.
• Always use a junction box — don’t parallel-wire sensors directly. The trim pots are essential for clinical-grade corner accuracy.
• Shield at one point only — ground loop interference from hospital medical equipment is the #1 cause of unstable readings.
• Use the gradual substitution method for calibration — it’s practical for beds where you can’t stack 370 kg of test weights.
• Add signal filtering in the indicator — mechanical artifacts from bed articulation are not real weight changes. Let the software handle them.
• Route cables inside the frame — the bed’s steel structure is your best EMI shield. Use it.
• Re-torque mounting bolts after movement testing — vibration loosens bolts, and loose bolts cause drift. Use thread-locking adhesive.
