The WST1103 is a flat type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

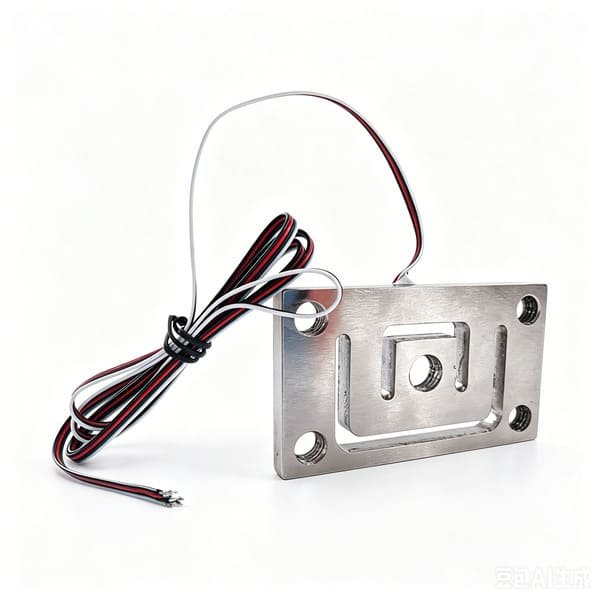

WST1103 planar beam load cell weight sensor, It is made of alloy steel, The capacity is bigger than regular type planar beam load cell, It could use on platform scale, Live stock scale, Also the price cheaper than shear beam load cell, This load cell much thinner, It could make the scale size much lower, It is very suitable for low space scale use.
FEATURES
Alloy steel,surface anodized and anticorrosion;
Very low profile,matched output;
Suitable for low profile infant and adult medical scales,low profile platform scales etc.

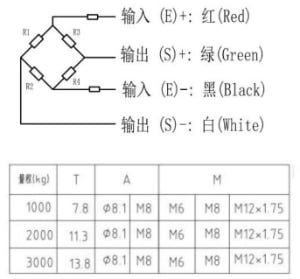

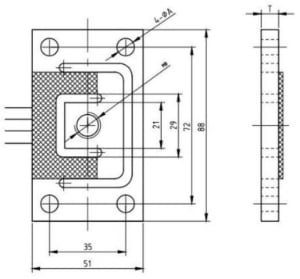

SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST1103 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 1,2,3(t) | Accuracy Class | 0.02%F.S |
| Rated Output | 1.8±0.2mV/V | Material | Alloy steel |
| Ingress Protection | IP65 | Compensated Temp. Range | -10～+60℃ |
| Comprehensive Error | 0.02%F.S | Operating Temp. Range | -20～+80℃ |
| Excitation, Maximum | 18VDC | Zero Balance | ±2%F.S |
| Excitation, Recommended | 6～12VDC | Linearity Error | ±0.02％F.S |
| Safe Overload | 120%F.S | Repeatability Error | ±0.02％F.S |
| Ultimate Overload | 150%F.S | Hysteresis Error | ±0.02％F.S |
| Insulation Resistance | ≧5000MΩ(100VDC) | Creep | ±0.02%F.S/5min |
| Cable | 4 Color PVC Wires | Input Resistance | 1090±30Ω |
| Cable Length | Φ1.0×1000mm | Output Resistance | 1000±5Ω |
| Temp. Effect on Output | ±0.05%F.S/10℃ | Wiring Code | Exc+：Red Exc-：Black |
| Temp. Effect on Zero | ±0.05%F.S/10℃ | ||
