factory-direct accessories, built to the application-specific capacity and accuracy your project requires.
The WST1511 is a accessories. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

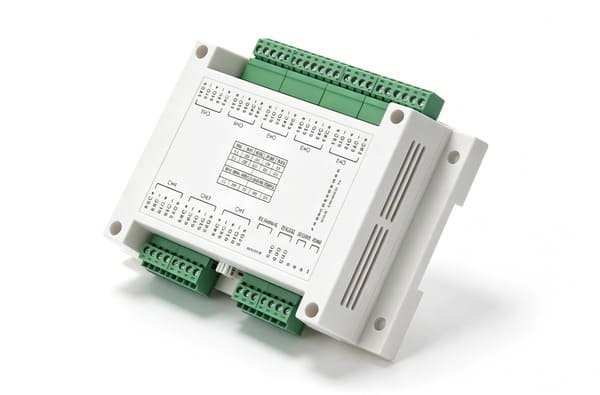

WST1511 1-8 Multi-channel load cell weighing transmitter, The eight-channel digital transmitter is a high-quality product designed for various industrial applications. It digitally processes the weak weight signals output by the weighing sensor (group) and outputs them to the user’s host system via RS232 and RS485 serial communication.
SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST1511 Technical Specifications | |||
|---|---|---|---|
| Rated Output | Supports both RS232 and RS485 simultaneously | Input Sensitivity | 0.4~6mV/V |
| Supply Voltage | DC:10V~30V | Ingress Protection | Ip64 |
| Power Supply | DC:10V~30V | Power consumption | <6W |
| Input Sensitivity | 0.4~6mV/V | Excitation, Recommended | 5VDC±2% |
| Comprehensive precision | 1/10000 | Communication protocol | Modbus RTU protocol and free protocol |
| Baud rate | 1200,2400,4800,9600,19200,38400,57600,115200 | Material | Plastic |
| A/D resolution | 24-bit, Delta-Sigma method | On-off output | / |
| Sample frequency | 10,40,640,1280 times per second | Operating Temp. Range | -30~85℃ |
| Drive capability | 8-channel Load cell | Display accuracy | 1/10000 |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Multi-channel junction boxes equalise signals from up to eight sensors for truck, hopper and silo weighing installations using the WST1511.
Up to 8 cells
Shielded 4-wire and 6-wire cables, ODU / M12 / aviation connectors and conduit-rated assemblies for demanding cable runs alongside the WST1511.
OEM lengths
Self-aligning mounting feet, load buttons, stoppers and overload protection hardware — matched to the WST1511 to preserve accuracy over millions of cycles.
Stainless / alloy
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST1511 | — | This page | Current selection |
| WST1513 | — | Accessories | Alternative model in the same class |
| WST1512 | — | Accessories | Alternative model in the same class |
| WST1510 | — | Accessories | Alternative model in the same class |
| WST1509 | — | Accessories | Alternative model in the same class |
| WST1508 | — | Accessories | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST1511 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST1511 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
