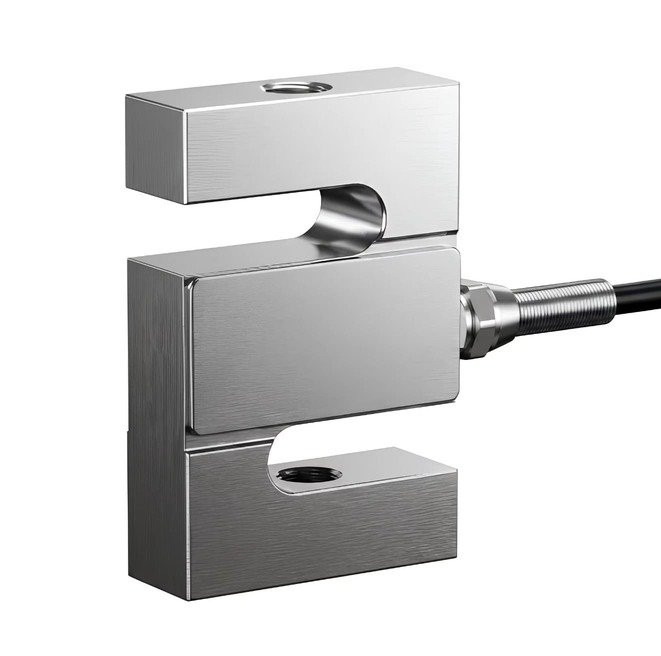

WST401 S type load cell the quality and performance all is very well, It could measure both tension and compression force. It could use on Hopper scales, Crane scale, tensile testing, test benches, Fitness equipment.
| Rated Load | 0.05～200(kN) | ||
| Comprehensive Error | ±0.02～0.05%F.S | Excitation,Recommended | 10VDC |
| Rated Output | 2.0mV/V | Safe Overload | 150%F.S |
| Zero Balance | ±1.0%F.S | Ultimate Overload | 200%F.S |
| Creep | ±0.02%F.S/30min | Insulation Resistance | ≥5000MΩ(50VDC) |
| Input Resistance | 380±10Ω | Cable | 4-Wire Shielded Cable |
| Output Resistance | 350±3Ω | Cable Length | <5t,3m;≥5t,6m |
| Temp.Effect on Output | ±0.02%F.S/10℃ |
Ingress Protection | IP65 |
| Temp.Effect on Zero | ±0.02%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Operating Temp.Rang | -20～+65℃ | Sig+:Green Sig-:White | |
