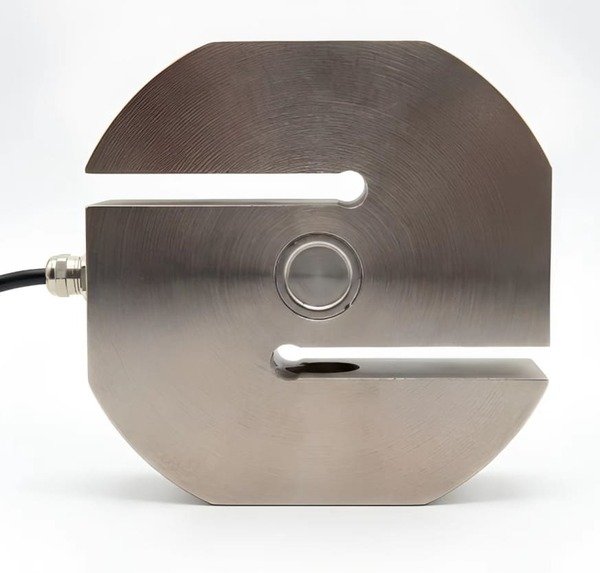

WST402 hopper scale uses S type tension and compression load cell, High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
| Rated load(KG) | 20～5000kg | Temp.effect on span | ±0.02%FS/10℃ |
| Comprehensive error | 0.02%FS | Use temp.range | -20℃~+65℃ |
| Rated output | 2.0mV/V | Input resistance(Ω) | 380±10 |
| Creep(30 min.) | ±0.02%F.S | Output resistance(Ω) | 350±3 |
| Zero balance | ±1.00%F.S | Insulation resistance(MΩ) | >5000 |
| Temp.effect on zero | ±0.02%FS/10℃ | Excitation voltage | 10VDC |
| Safe overload | 150%FS | ||
