Torque sensor

WST1013 Thru Hole Reaction Static Torque Sensor

factory-direct torque sensor, built to the application-specific capacity and accuracy your project requires.

Get a Quote Request Datasheet
Rated Load 50,100,200,300,500,1000(Nm) Accuracy Class ±0.1%F.S,±0.2%F.S Rated Output 1.5±0.1mV/V Material Alloy steel Ingress Protection IP65

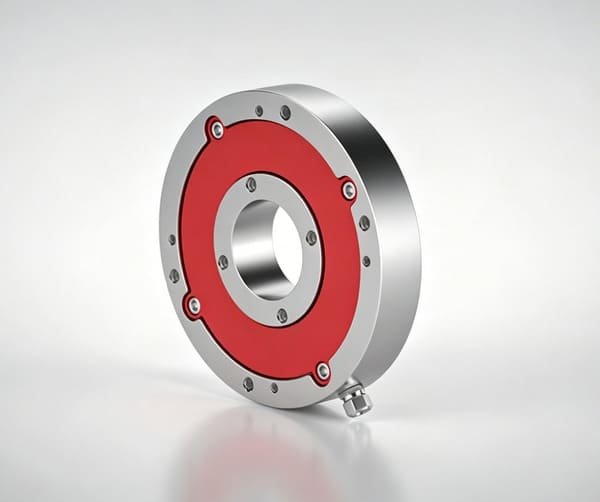

Column type torque sensor

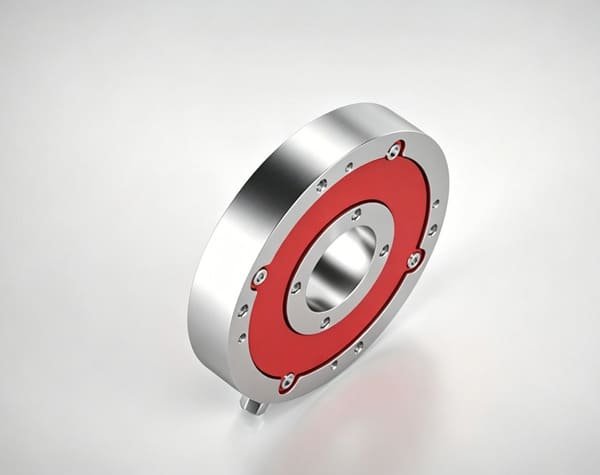

Reaction Torque Sensor

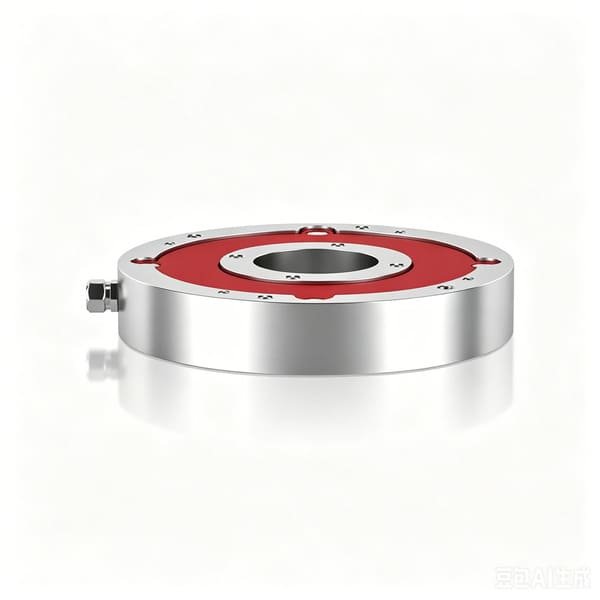

static torque sensor

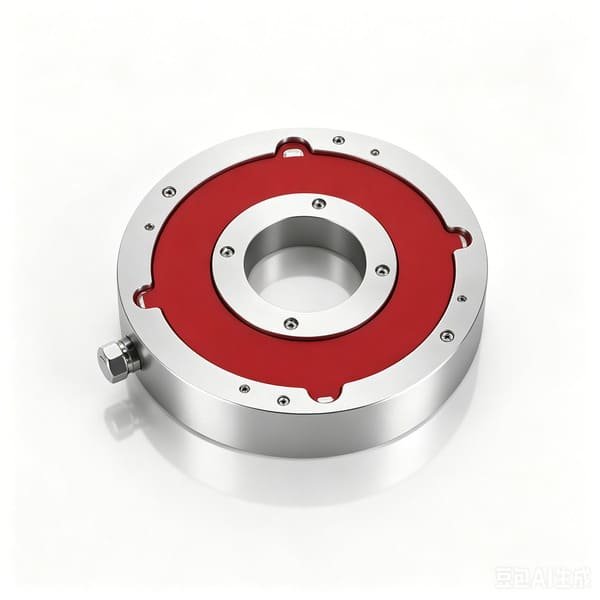

Thru Hole Reaction Torque Sensor
Factory overload tested
Factory-calibrated output
Sealed protection
OEM & ODM Available
Overview

What Is the WST1013 Thru Hole Reaction Static Torque Sensor?

The WST1013 is a torque sensor designed for OEM integration and custom equipment builds.

↓ See the full specifications table

WST1013 dimension drawing
WST1013 outline dimensions
In Detail

WST1013 in Detail

WST1013 Thru Hole Reaction Static Torque Sensor, It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department.

FEATURES

Static torque sensor，mV signal output;

The flange connection is easy to install and use;

It is used to measure the torque value of static and discontinuous rotation in the middle and low ranges.

SIZE(mm)

pancake type torque sensor

SPECIFICATION

Technical Data

WST1013 Full Specifications

Complete technical parameters, as delivered from the factory.

WST1013 Technical Specifications
Rated Load 50,100,200,300,500,1000(Nm) Accuracy Class ±0.1%F.S,±0.2%F.S
Rated Output 1.5±0.1mV/V Material Alloy steel
Ingress Protection IP65 Compensated Temp. Range -10～+60℃
Operating Temp. Range -20～+75℃ Zero Output ±1.0%F.S
Safe Overload 150%F.S Excitation, Recommended 5~10VDC
Ultimate Overload 200%F.S Temp.Effect on Span ±0.03%F.S/10℃
Electrical Interface 4pin Circular Connector Temp. Effect on Zero ±0.03%F.S/10℃
Cable 4-Wire Shielded Cable,φ5.0mm×3m Input Resistance 350±10Ω or700±10Ω
Output Resistance 350±10Ω or700±10Ω Insulation Resistance ≥2000MQ/100VDC
Wiring Code E+:Red E-:Black Response Frequency 100us
Size(mm) φA / 14 6 / 1 9 6 / 214
Why the WST1013

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST1013 Works Best

Rotary Torque Measurement

In-line between motor and load, the WST1013 measures static and dynamic torque in real time — for engine test stands, pump characterisation and gearbox QC.

Shaft-rotating

Drive-train Test Rigs

Driveshaft, halfshaft and rear-axle test rigs fit the WST1013 between the driven and driving halves to capture transient torque during shift events.

High RPM ready

Robot Joint Torque Feedback

Integrated into robot joint modules and collaborative robot wrists, the WST1013 closes the force-control loop for assembly, polishing and human-safe co-operation.

Joint integration

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST1013 installation detail
WST1013 construction detail
Selection Guide

WST1013 vs Other Vektorforce Torque sensor

ModelCapacity RangeTypical ApplicationChoose When
WST1013 — This page Current selection
WST1016 — Torque sensor Alternative model in the same class
WST1015 — Torque sensor Alternative model in the same class
WST1014 — Torque sensor Alternative model in the same class
WST1012 — Torque sensor Alternative model in the same class
WST1011 — Torque sensor Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST1013

What accuracy class is the WST1013?

The WST1013 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST1013?

The WST1013 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST1013 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST1013 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST1013 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
