The WST1506 is an accessories designed for OEM integration and custom equipment builds.

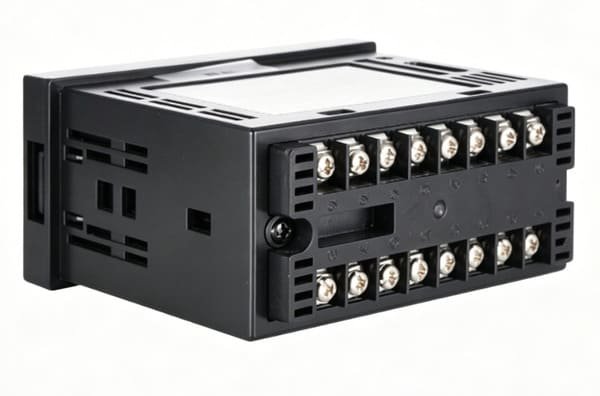

WST1506 miniature force sensor use small size weighing indicator controller, This type indicator of force measurement shows that the speed is faster, up to 1280 times/second; the instrument is equipped with 2 relays or 3 transistors as standard; the following functions can be added to the basic model: 1. With analog output 0-20mA , 4-20mA, 0-±10V; 2. With RS485/RS232.
SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST1506 Technical Specifications | |||
|---|---|---|---|
| Power Supply | 9V-30VDC | Display Type | Single-row 5-digit LED highlighting(0.56 inch) |
| Input Sensitivity | 0.4-6mV/V | Ingress Protection | IP65 |
| Supply Voltage | 9V-30VDC | Comprehensive Precision | ≤0.05%F.S |
| Display | Single-row 5-digit LED highlighting(0.56 inch) | Sensor Excitation Voltage | 5VDC±2%,100mA(up to 6350Ω sensors can be connected) |
| Output Rate | 10,40,640,1280 times/second | Operation Temperature | -30-60 ℃ |
| On-off Output | 2 way,250VAC/3A | Analog output | 0-±10V,0-20mA,4-20mA |
| The communication output | RS232 connector;Modbus RTU agreement and free agreement available | ||
