The WST1504 is an accessories designed for OEM integration and custom equipment builds.

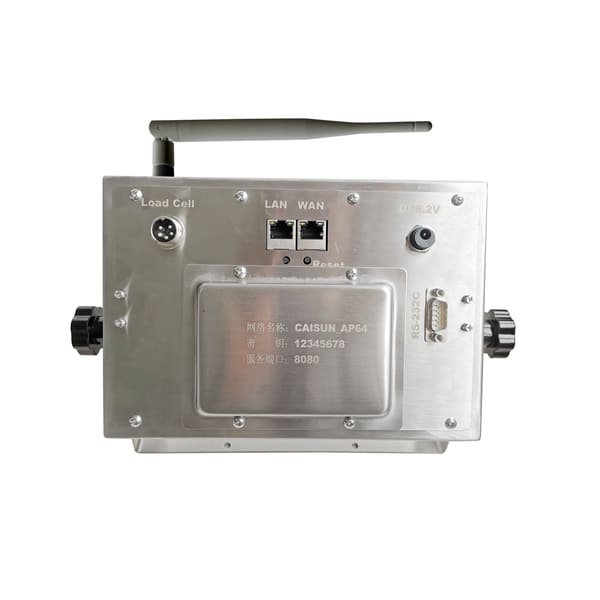

WST1504 stainless steel weighing indicator controller with Wifi function, Stainless steel h6-digit 20.2mm red LEDousing, , Dimensions：265×162×58mm, Applications：Electronic platform scale, weighing scale, etc.
FEATURES
TCP/IP weighing indicator, with WiFi – WAN/LAN
ASCII communication protocol, unidirectional and bidirectional communication are optional
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST1504 Technical Specifications | |||
|---|---|---|---|
| Power Supply | 6V 4AH/100～240VAC 50HZ | Display Type | 6-digit 20.2mm red LED |
| Interface | RS232, RS485(optional) | Material | Stainless steel |
| Dimensions | 265×162×58mm | Conversion principle | Z△ type A/D converter |
| Input voltage | ±6 mV | A/D resolution | 1,000,000 |
| A/D speed | 8 times per second | Load cell excitation voltage | DC5V,drive up to 4 pcs 350Ω load cell |
| Display | 0.8 inch 6 digit LED display | Serial communication interface | Two independent RS-232 serial ports ASCll data output Baud rate 1200/2400/4800/9600 Optional RS-485 interface |
| Power supply | AC220V 50Hz,DC6V/4Ah battery inside | Relay output | One relay output optional |
| Operating Temp. Range | -10℃~40℃ | Version number | 4.02 |
| Accuracy Class | Max number of verification scale intervals | nind =3,000 | |
| Divisions | 3,000-15,000 | Mini input voltage | Umin =0.5 Mv |
| Mini input voltage per verification scale interval | △umin =1 Mv | Mini/max load cell impedance | 87 Ω to 1,000 Ω |
| Fraction of mpe | pind =0.5 | Cable connection | 4 wires |
| Max value of cable length per wire cross section | (LIA)max=150 m/mm² | Max number of load cells | 4 pcs 350 Ω load cells 8 pcs 700 Ω load cells |
| Display resolution | 1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/ 0.002/0.00510/20/50/100/200/500 0.10/0.20/0.50/0.010/0.020/0.050 | External AC adapter | 100-240VAC 50/60Hz |
| Rechargeable internal battery | 6V/4Ah | Full charge battery recharge time | 12 hours |
| Storage temperature | -25℃ to +55℃ | Relative humidity | 10%to 85%non-condensing |
