factory-direct miniature force sensor, built to the application-specific capacity and accuracy your project requires.
The WST616 is a miniature force sensor. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

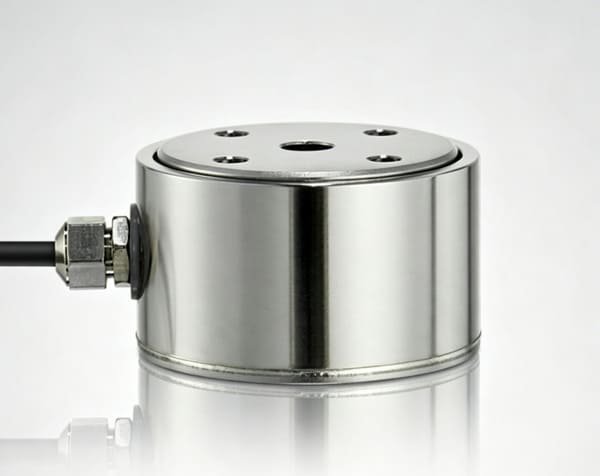

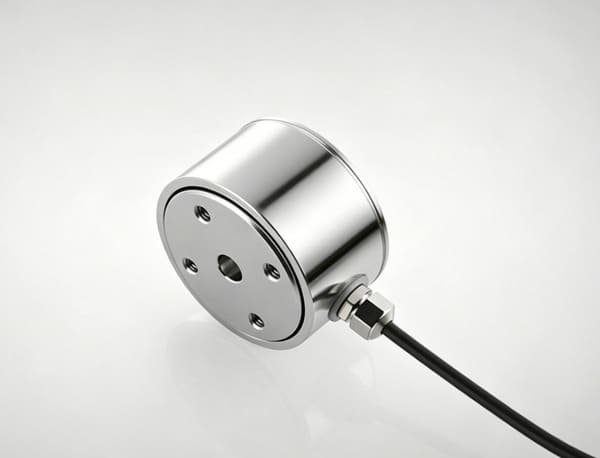

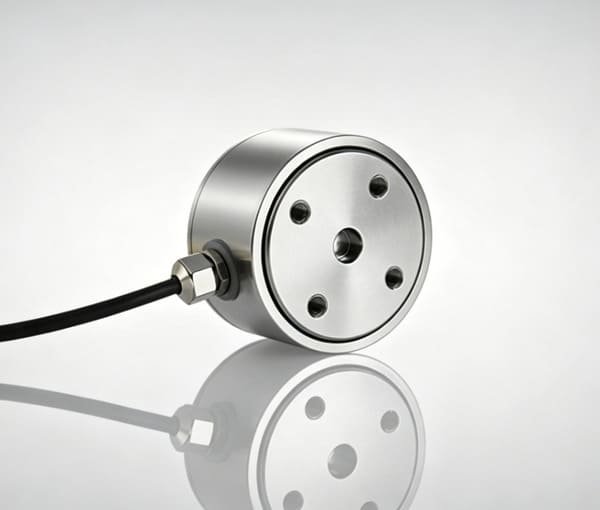

WST616 column type tension and compression force sensor, Mainly use to measure tension and compression force, It is suitable for force measurement with limited space. The micro force sensor is commonly used in some fatigue tests, strength tests or laboratory occasions,industrial robot, industrial automation device, test machines, and other smart projects.
Complete technical parameters, as delivered from the factory.
| WST616 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 1-30KN | Material | stainless steel |
| Rated Output | 1.0/2.0±10%mv/v | Accuracy Class | ±0.1%F.S |
| Ingress Protection | IP66 | Comprehensive Error | ≤±0.1% |
| Temp.effect on span | ±0.05%F.S/10℃ | Temp. Effect on Zero | ±0.05%F.S/10℃ |
| Zero Balance | ±2%F.S | Compensated Temp. Range | -10~+60℃ |
| Non-linearity | 0.1% | Operating Temp. Range | -20~+80℃ |
| Creep | ±0.1%F.S/30min | Excitation, Recommended | 5~15V |
| Input Resistance | 385±5Ω | Safe Overload | 150%F.S |
| Output Resistance | 350±3Ω | Ultimate Overload | 300%F.S |
| Insulation Resistance | ≥5000MQ/100VDC | Defend grade | IP66 |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Embedded in miniature assembly machines and micro-press stations, the WST616 returns millinewton-resolution reaction force without enlarging the tool envelope.
multiple capacity options range
Mounted at the wrist or fingertip, the WST616 gives collaborative and surgical robots a sense of touch — enabling delicate pick-and-place and assembly verification.
Miniature envelope
Inside disposable and reusable medical devices the WST616 monitors injection, occlusion and contact forces, supporting closed-loop safety logic.
Biocompatible option
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST616 | — | This page | Current selection |
| WST617 | 5-2000N | Miniature force sensor | Alternative model in the same class |
| WST615 | 20-2000N | Miniature force sensor | Alternative model in the same class |
| WST614 | 10-500N | Miniature force sensor | Alternative model in the same class |
| WST613 | 20-5000N | Miniature force sensor | Alternative model in the same class |
| WST612 | 50-1000N | Miniature force sensor | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST616 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST616 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
