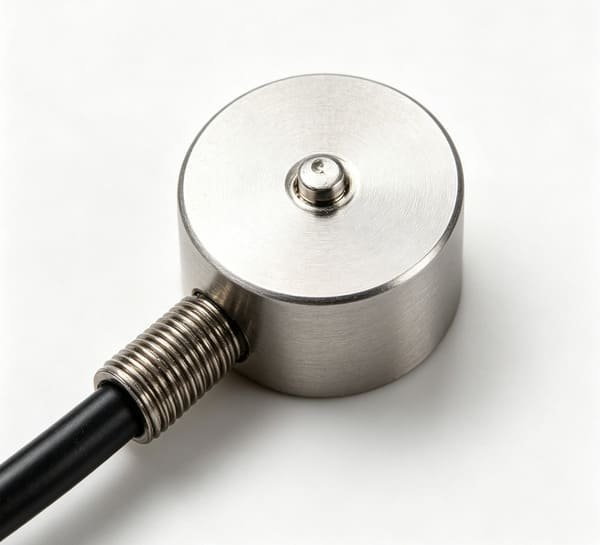

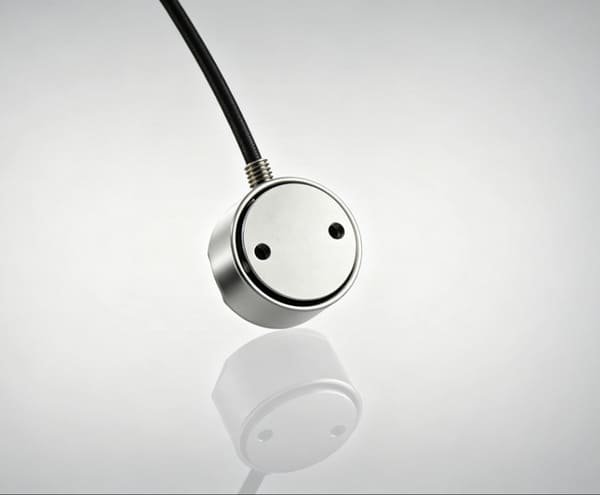

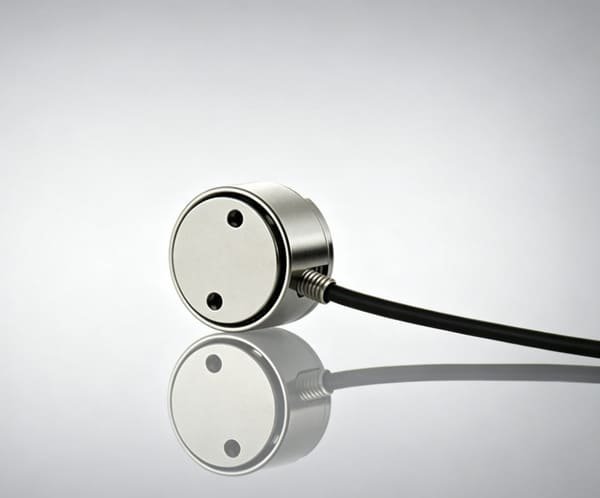

WST617 button type mini load cell weight sensor, Mainly use to measure tension and compression force, It is suitable for force measurement with limited space. The micro force sensor is commonly used in some fatigue tests, strength tests or laboratory occasions,industrial robot, industrial automation device, test machines, and other smart projects.
| Rated Load | 5,10,20,50,100,200,500,1000,2000(N) | ||
| Comprehensive Error | ≤±0.1%F.S | Compensated Temp Range | -10～+60℃ |
| Rated Output | 1.5±10%mV/V | Operating Temp Range | -20～+80℃ |
| Zero Balance | ±2.0%F.S | Excitation,Recommended | 5～10V |
| Linearity Error | 0.1%F.S | Safe Overload | 200%F.S |
| Creep | ±0.1%F.S/30min | UItimate Overload | 500%F.S |
| Input Resistance | 650/350±10Ω | Insulation Resistance | ≥5000MΩ(100VDC) |
| Output Resistance | 650/350±10Ω | Ingress Protection | IP66 |
| Temp.Effect on Span | ±0.05%F.S/10℃ | Wiring Code | Exc+: Red Exc-: Black |
| Temp.Effect on Zero | ±0.05%F.S/10℃ | Sig+:Green Sig-:White | |
