factory-tuned customized load cell for tmr feed mixer OEM integration.
The WST708 is a customized load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

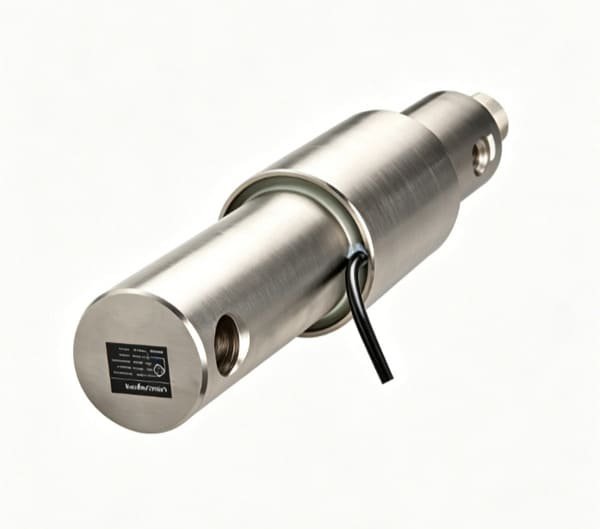

WST708 customized double ended shear beam load cell use for TMR Feed Mixer, This is a pin sensor with a double shear beam structure. Strain gauges are installed inside through drilled holes, and the load is detected by measuring the shear deformation of the pin under stress. It has mounting holes at both ends, allowing direct replacement of the existing hinge pins or shear pins in the equipment without altering the mechanical structure.
TMR mixers are typically equipped with 3-4 load cells (shear beam or pin type), installed at the support legs or chassis connection of the mixing tank, with an accuracy requirement of ±0.1% to ±0.5%.
FEATURES
All-stainless steel construction, corrosion-resistant and impact-resistant
Protection rating typically reaches IP67/IP68, suitable for harsh farm environments
Can directly replace existing pins, easy installation
Bidirectional measurement (tensile/compression)
Vibration resistant and resistant to lateral force interference
Complete technical parameters, as delivered from the factory.
| WST708 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 5Ton/7.5Ton/10Ton/Customized | Accuracy Class | ±0.5%F.S |
| Rated Output | 5Ton of 0.77±0.005mV/V, 7.5Ton of 1.16±0.005mV/V | Material | Alloy steel or stainless steel |
| Ingress Protection | IP67 | Compensated Temp. Range | -35～+70℃ |
| Comprehensive Error | ±0.5%F.S | Operating Temp. Range | -10～+40℃ |
| Excitation, Recommended | 5～12VDC | Zero Balance | ±1%F.S |
| Excitation, Maximum | 18VDC | Linearity Error | ±0.5%F.S |
| Safe Overload | 120%F.S | Repeatability Error | ±0.1%F.S |
| Ultimate Overload | 150%F.S | Hysteresis Error | ±0.5%F.S |
| Insulation Resistance | ≥5000MΩ(50VDC) | Creep | ≤±0.05%F.S/30min |
| Cable | 4-wire shielded cable | Input Resistance | 380±30Ω |
| Cable Length | Φ5.0mm*L5m | Output Resistance | 350±3Ω |
| Temp. Effect on Output | ±0.05%F.S/10℃ | Wiring Code | Exc+：Red Exc-：Black |
| Temp. Effect on Zero | ±0.07%F.S/10℃ | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Non-standard housings, mounting patterns and cable exits are engineered around the WST708's strain-gauge body for direct drop-in to existing machinery.
Drawing-based fit
When the catalogue range does not match, the WST708 can be re-rated above or below standard capacities with matched calibration and certificate.
Custom capacity
Sub-sea, cryogenic, vacuum and high-temperature variants wrap the WST708 in special sealing, materials and cable — certified for the application.
Special certified
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST708 | — | This page | Current selection |
| WST707 | 10t~20t | Customized Load cell | Alternative model in the same class |
| WST706 | 0.5-100kg or customized weight range | Customized Load cell | Alternative model in the same class |
| WST705 | 100-300KN or customized weight range | Customized Load cell | Alternative model in the same class |
| WST704 | 40~1100 kN | Customized Load cell | Alternative model in the same class |
| WST702 | 10-200KN or customized weight range | Customized Load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST708 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST708 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
