Customized Load cell

WST704 Electric ice covering detection load cell sensor

factory-direct customized load cell, built to the application-specific capacity and accuracy your project requires.

Get a Quote Request Datasheet
Rated Load 40~1100 kN Material stainless steel Rated Output 1.5mv/v Accuracy Class ±0.05%F.S Ingress Protection IP67
Power icing detection sensor
Power line icing detection sensor

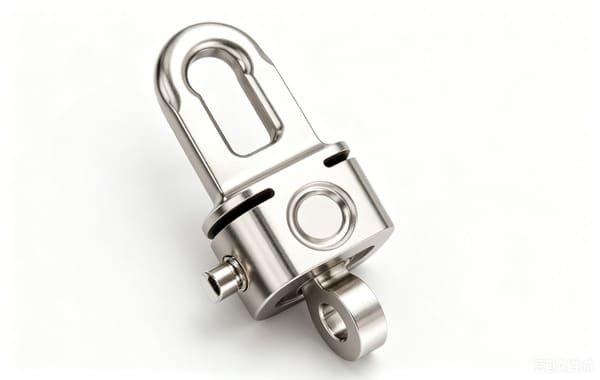

Ice Detection Load Cell
Factory overload tested
Factory-calibrated output
Sealed protection
OEM & ODM Available
Overview

What Is the WST704 Electric ice covering detection load cell sensor?

The WST704 is a customized load cell designed for OEM integration and custom equipment builds.

↓ See the full specifications table

WST704 dimension drawing
WST704 outline dimensions
In Detail

WST704 in Detail

Power grid icing monitoring is a crucial link in ensuring the safe and stable operation of the power grid during winter, and its core position is widely recognized worldwide. Power grid icing detection sensors are the core equipment for achieving real-time and accurate monitoring and issuing early warnings. WST704 Electric ice covering detection load cell sensor, ice detection load cell has good weather resistance and sealing stable performance. The main supply of high voltage power transmission and transformation engineering, used for power transmission and transformation line ice-covered online monitoring system tension monitoring and measurement, and according to customer requirements to add analog transmitter or digital module.

Ice Detection weight sensor

Technical Data

WST704 Full Specifications

Complete technical parameters, as delivered from the factory.

WST704 Technical Specifications
Rated Load 40~1100 kN Material stainless steel
Rated Output 1.5mv/v Accuracy Class ±0.05%F.S
Ingress Protection IP67 Comprehensive Precision 0.2~0.5% FS
Sensitivity 1.5 mV/V Creep ±0.2% FS/30min
Zero Output ±1% FS Temperature Effect On Zero ±0.2% FS/10℃
Temperature Effect On Output ±0.2% FS/10℃ Operating Temperature Range -40~+70 ℃
Input Resistance 680±15 Ω Output Resistance 650± 5 Ω
Insulation Resistance ＞5000 MΩ Safe Load Limit 120% FS
Bridge Voltage Reference 10V DC Load Cell Mode Of Connection Input+: Red
Why the WST704

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST704 Works Best

Special Mechanical Form Factors

Non-standard housings, mounting patterns and cable exits are engineered around the WST704's strain-gauge body for direct drop-in to existing machinery.

Drawing-based fit

Non-Standard Capacity Ranges

When the catalogue range does not match, the WST704 can be re-rated above or below standard capacities with matched calibration and certificate.

Custom capacity

Extreme Environment Adaptation

Sub-sea, cryogenic, vacuum and high-temperature variants wrap the WST704 in special sealing, materials and cable — certified for the application.

Special certified

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST704 installation detail
WST704 construction detail
Selection Guide

WST704 vs Other Vektorforce Customized Load cell

ModelCapacity RangeTypical ApplicationChoose When
WST704 — This page Current selection
WST709 1-100Ton Customized Load cell Alternative model in the same class
WST703 — Customized Load cell Alternative model in the same class
WST708 5Ton/7.5Ton/10Ton/Customized Customized Load cell Alternative model in the same class
WST707 10t~20t Customized Load cell Alternative model in the same class
WST706 0.5-100kg or customized weight range Customized Load cell Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST704

What accuracy class is the WST704?

The WST704 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST704?

The WST704 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST704 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST704 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST704 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
