factory-direct wireless dynamometer, built to the application-specific capacity and accuracy your project requires.
The WST906 is a wireless dynamometer. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

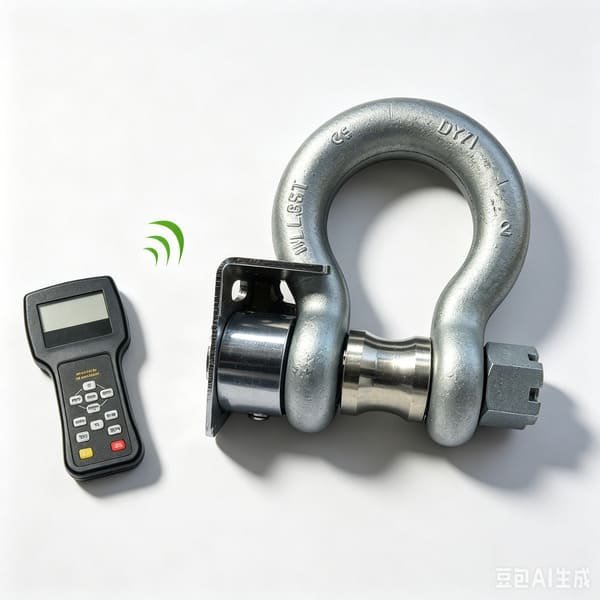

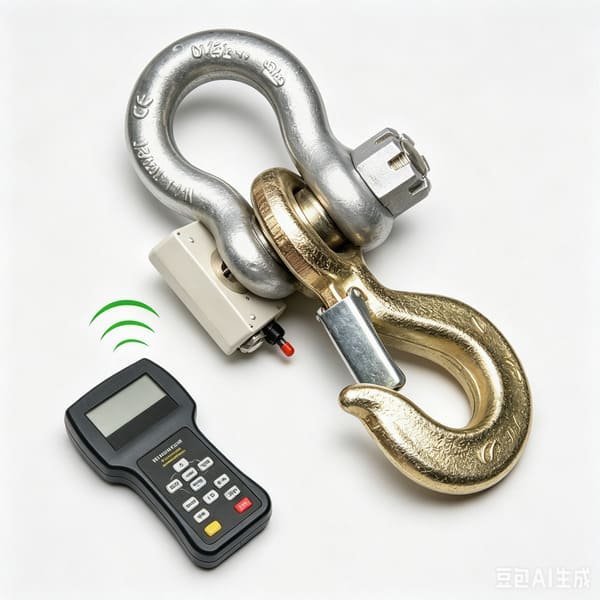

WST906 wireless load pin shackle crane scale, Accurate and reliable tensile load monitoring for lifting applications. Designed for easy mobility, our load links are perfect for on-the-go applications. The application like Port equipment, Crane measure the weight, Boat use, Water bag calibrate use.
PROFILE
Material: High tensile carbon steel construction;
Protection class: IP67 class water proof;
Accuracy: 0.1% ;
Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short
Tons(t) pounds(lb), Newton and kilonewton(kN);
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to
different places value;
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning.
User calibration(with password);
Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST906 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 5-30Ton | Display | LCD type display |
| Accuracy Class | 0.1% | Application | Port equipment, Crane measure the weight, Boat use, Water bag calibrate use |
| 280D Indicator Display | 25mm(1”)5digits LCD with backlight | Power on zero range | 20%F.S |
| Manual Zero Range | 4%F.S | Tare Range | 100%F.S |
| Stable Time | ≤5 seconds | Overload Indication | 100%F.S.+9e |
| Max.Safety Load | 125%F.S. | Ultimate Load | 400%F.S. |
| Sealing Standard | IP67 protected from dust and high pressure jets of water | Load Shackle Battery | Standard 18650 Lithium battery,3.7V/3100mAh |
| Indicator Battery | Standard 18650 Lithium battery,3.7V/3100mAh | Operating Temp. | -20℃~+50℃ |
| Operating Humidity | ≤85%RH under 20℃ | Wireless Distance | 200m without obstacle |
| Wireless Frequency | 433MHz | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Handheld wireless force gauges built around the WST906 stream peak, average and trigger data to a phone or tablet over Bluetooth — no cable, no logger.
Bluetooth link
Crane-safe shackle-mounted dynamometer based on the WST906 transmits load + boom angle to operator displays — for safer lifting and overload alarms.
Long-life battery
Rigging crews, lifting equipment inspectors and inspectors verify slings, shackles and winches with a wireless dynamometer built on the WST906 — readings captured straight to mobile device.
Mobile-recorded
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST906 | — | This page | Current selection |
| WST907 | 1-200Ton | Wireless Dynamometer | Alternative model in the same class |
| WST905 | 20-500Ton | Wireless Dynamometer | Alternative model in the same class |
| WST904 | 1-200Ton | Wireless Dynamometer | Alternative model in the same class |
| WST903 | 1-200Ton | Wireless Dynamometer | Alternative model in the same class |
| WST902 | 1-200Ton | Wireless Dynamometer | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST906 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST906 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
