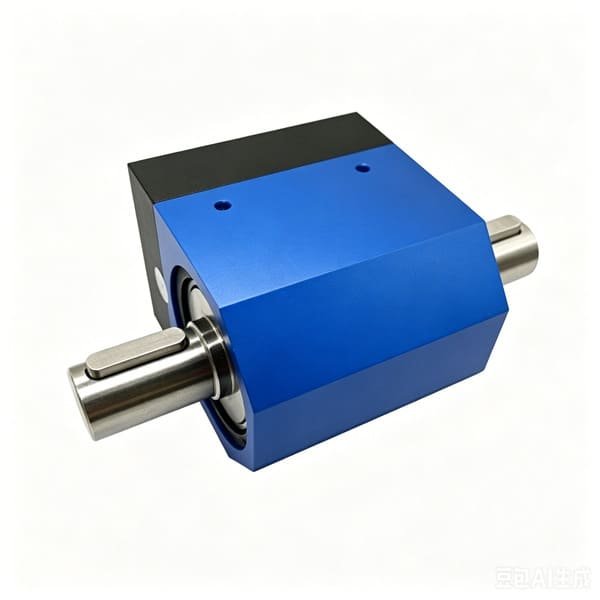

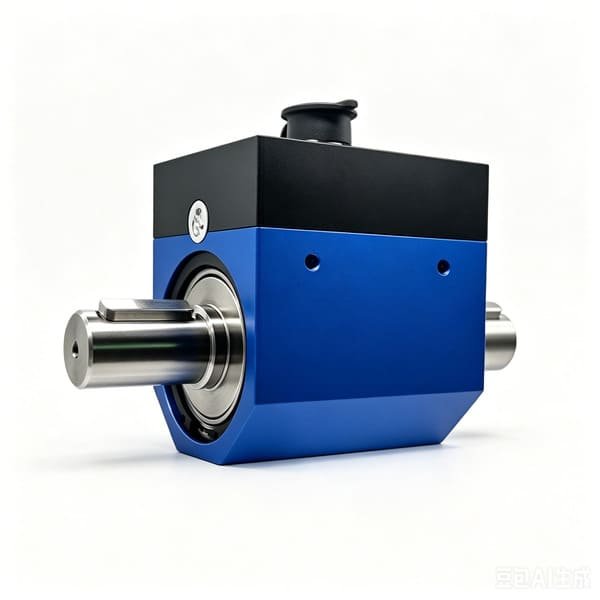

WST1001 Dynamic Force Sensor Rotary Torque sensor Transducer, Shaft to Shaft Rotary Torque Sensor offers a unique solution for torque auditing applications. The shaft torque sensor (aka shaft torsion sensor) is available in a wide capacity range and utilizes strain gauge technology.
Rotational sensors (or dynamic torque sensor) are utilized in applications where the torque measurement must be taken at a spinning shaft, engine or a stationary motor. In this case, the transducer must rotate in-line attached to the shaft. A rotary torque transducer is fitted with a slip ring or wireless electronics to transmit the torque signal while rotating.
Rotary Torque Transducers are frequently used as testing/auditing tools for motors, torque measuring tool, turbines, and generators to measure rotational torque. A shaft-to-shaft Rotating Torque Sensor can be also utilized for feedback control, monitoring torque, and analyzing the efficiency of test stands and for torque measurement of rotating shaft using strain gauge.

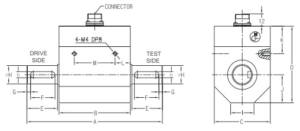

| Range(N.m) | A | B | C | D | E | F | G | H | h | I | J | K | L | M |
| 5,10,20,30,50,100 | 133 | 70 | 55 | 75 | 30 | 24 | 3.5 | 18 | 6 | 23 | 27.5 | 27 | 15 | 40 |
| 200,300,500 | 144 | 70 | 65 | 85 | 35 | 30 | 3 | 28 | 8 | 29 | 32.5 | 28 | 12 | 46 |
FEATURE
Non-contact dynamic torque, small size,no wear；
Can measure torque value and rotational speed in both forward and reverse directions，Max speed≤8000RPM；
Torque sensor optionally available with integrated OLED panel,display torque, speed and power；
Both ends are optical shafts, the shaft material is 17-4PH stainless steel, and the shell material is aluminum alloy.
SPECIFICATION
| Range | 5,10,20,30,50,100,200,300,500(Nm) |
||
| Accuracy | ±0.2%F.S(standard),±0.1%F.S(Optional) | Temp.Effect on Zero | ±0.2%F.S/10℃ |
Supply |
12~24VDC | Temp.Effect on Output | ±0.2%F.S/10℃ |
| Torque Output | 10±5KHZ(standard) | Compensated Temp.Range |
-10～+60℃ |
| 4~20mA,±5V,±10V,RS485,RS232(Optional) | Operatimg Temp.Range | -20～+75℃ |
|
| Speed Output | Max speed≤8000RPM,60 pulse(standard) | Electrical Connection | 8pin |
| 4～20mA,0～10V,RS485,RS232(Optional) | Safe Overload | 200% | |
| Supply current | <100mA | Cable,Length | 5m |
| 8-Pin electrical connection(The output signal coexist with communication) | |||||
| Power plug | Pin5 | Red | Power supply:Vin+ | ||
| Pin6 | Black | Power supply:Vin- | |||
| Signal | Pluse/Current/Voltage | Pluse differential | |||
| Pin3 | Green | Torque | Torque:A+ | ||
| Pin4 | Yellow | Speed | Speed:B+ | ||
| Pin1 | White | Signal/(GND) | Torque:A+ | ||
| Pin2 | Blue | None or null | Speed:B- | ||
| Communication | RS485 | RS232 | |||
| Pin7 | Brown | A+ | TxD | ||
| Pin8 | Gray | B- | RxD | ||
| Signal-(Common)must use white GND,can’t use power supply- ; | |||||
| Vin-and Gnd and are not equal-level,there is a voltage difference. | |||||
