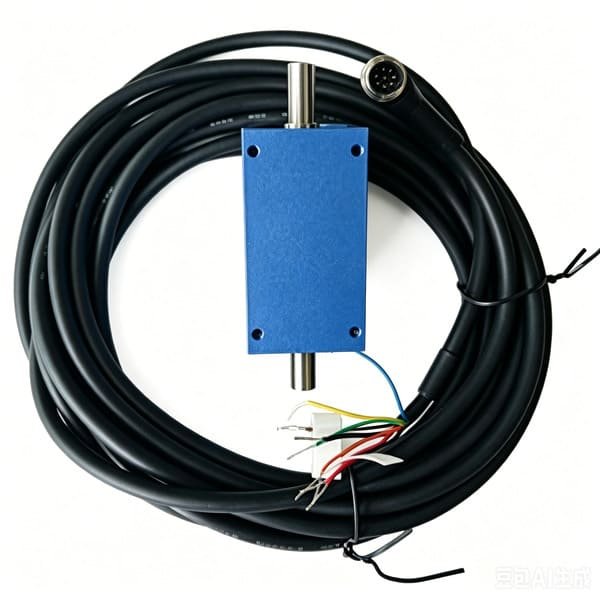

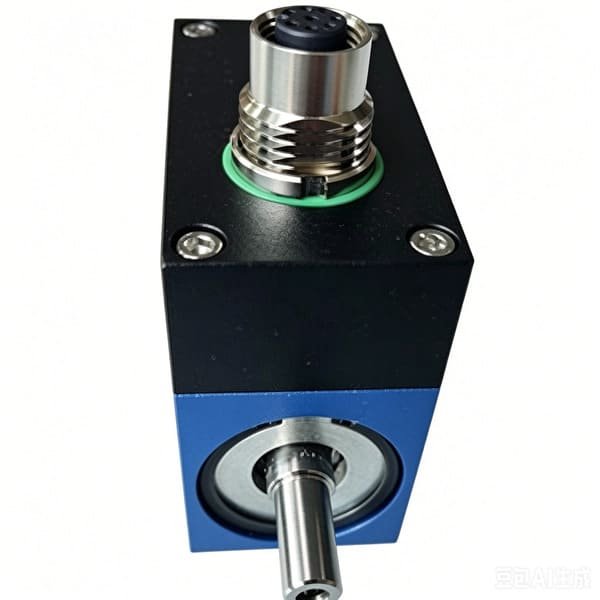

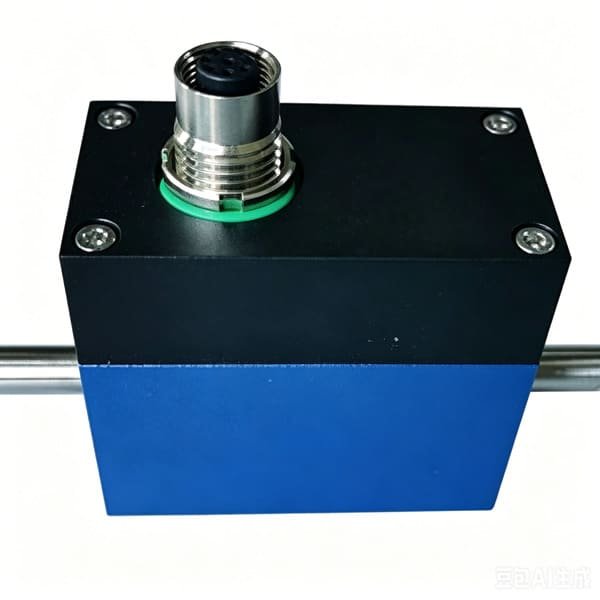

WST1002 small range rotary torque sensor, Shaft to Shaft Rotary Torque Sensor offers a unique solution for torque auditing applications. The shaft torque sensor (aka shaft torsion sensor) is available in a wide capacity range and utilizes strain gauge technology.
Rotational sensors (or dynamic torque sensor) are utilized in applications where the torque measurement must be taken at a spinning shaft, engine or a stationary motor. In this case, the transducer must rotate in-line attached to the shaft. A rotary torque transducer is fitted with a slip ring or wireless electronics to transmit the torque signal while rotating.
Rotary Torque Transducers are frequently used as testing/auditing tools for motors, torque measuring tool, turbines, and generators to measure rotational torque. A shaft-to-shaft Rotating Torque Sensor can be also utilized for feedback control, monitoring torque, and analyzing the efficiency of test stands and for torque measurement of rotating shaft using strain gauge.
Non-contact dynamic torque, small size,no wear；
Can measure torque value and rotational speed in both forward and reverse directions，Max speed≤16000RPM；
Torque sensor optionally available with integrated OLED panel,display torque, speed and power；
Both ends are optical shafts, the shaft material is 17-4PH stainless steel, and the shell material is aluminum alloy
SPECIFICATION
| Range | 0.1,0.2,0.3,0.5,1,2,3,5(Nm) | ||
| Accuracy | ±0.2%F.S(standard),±0.1%F.S(Optional) | Temp.Effect on Zero | ±0.2%F.S/10℃ |
| Supply | 12~24VDC | Temp.Effect on Output | ±0.2%F.S/10℃ |
| Torque Output | 10±5KHZ(standard) | Compensated Temp.Range | -10～+60℃ |
| 4～20mA,±5V,±10V,RS485,RS232(Optional) | Operating Temp.Range | -20～+75℃ | |
| Speed Output | Max speed≤16000RPM,30 pulse(standard) | Electrical Connection | 8pin aviation plug |
| 4～20mA,0～10V,RS485,RS232(Optional) | Safe Overload | 200% | |
| Supply current | <100mA | Cable,Length | 5m |
| 8-Pin electrical connection(The output signal coexist with communication) | |||||
| Power plug | Pin5 | Red | Power supply:Vin+ | ||
| Pin6 | Black | Power supply:Vin- | |||
| Signal | Pluse/Current/Voltage | Pluse differential | |||
| Pin3 | Green | Torque | Torque:A+ | ||
| Pin4 | Yellow | Speed | Speed:B+ | ||
| Pin1 | White | Signal/(GND) | Torque:A+ | ||
| Pin2 | Blue | None or null | Speed:B- | ||
| Communication | RS485 | RS232 | |||
| Pin7 | Brown | A+ | TxD | ||
| Pin8 | Gray | B- | RxD | ||
| Signal-(Common)must use white GND,can’t use power supply- ; | |||||
| Vin-and Gnd and are not equal-level,there is a voltage difference. | |||||
