WST1004 Disc-type dynamic torque sensor, Rotational sensors (or dynamic torque sensor) are utilized in applications where the torque measurement must be taken at a spinning shaft, engine or a stationary motor. In this case, the transducer must rotate in-line attached to the shaft. A rotary torque transducer is fitted with a slip ring or wireless electronics to transmit the torque signal while rotating.
Rotary Torque Transducers are frequently used as testing/auditing tools for motors, torque measuring tool, turbines, and generators to measure rotational torque. A shaft-to-shaft Rotating Torque Sensor can be also utilized for feedback control, monitoring torque, and analyzing the efficiency of test stands and for torque measurement of rotating shaft using strain gauge.

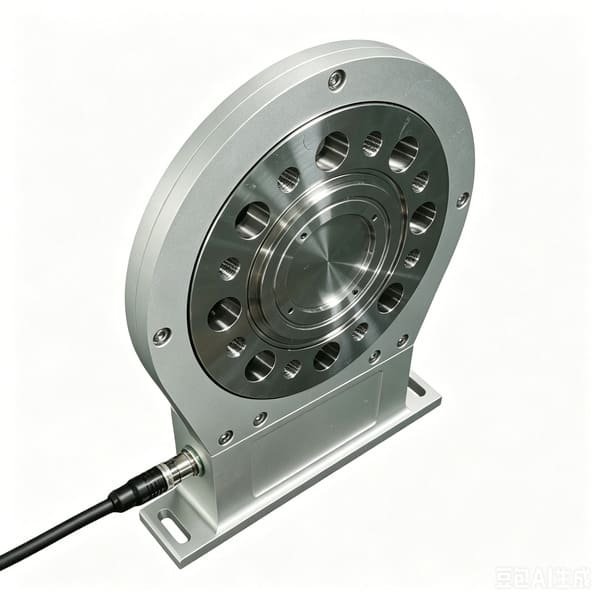

Disc-type Dynamic Torque Sensor – Bearingless
Features and Applications
• Measuring range: 50-10KNm
• Short installation length
• Integrated dual flexible disc coupling
• Bearingless, eliminating the effects of bearing friction
• Non-contact type
• High speed: 30K RPM
• Small installation angle
Measuring Range: 0-5000Nm
Accuracy: ±0.1, ±0.2%FS
Repeatability: ±0.02%
Zero-point Temperature Influence: ±0.02%FS
Full-scale Temperature Influence: ±0.02%FS
Compensation Temperature Range: -10～60ºC
Operating Temperature Range: -20～75ºC
Output: 10±5kHz, 4-20mA, ±5VDC, ±10VDC
RS485, RS232, CAN
Power Supply Voltage: 12-24VDC
Power Supply Current: Less than 100mA
Electrical Connection: 8-Pin
Overload Protection: 200%FS
Material: Sensor 17-4PH stainless steel, housing aluminum
Options
Speed Measurement: Speed: 30KRPM, 60 pulses
4-20mA, 5V/TTL ±5VDC,
±10VDC, RS485, RS232, CAN
Installation: Axial tolerance ±0.2mm, angular error 0.4°
Complete technical parameters, as delivered from the factory.
| WST1004 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 0-5000Nm | Accuracy Class | ±0.1, ±0.2%FS |
| Theory | non contact | Rated Output | Pulse output or analog output |
| Application | To test the output torque and power of motor,engine,internal-combustion engine. | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
In-line between motor and load, the WST1004 measures static and dynamic torque in real time — for engine test stands, pump characterisation and gearbox QC.
Shaft-rotating
Driveshaft, halfshaft and rear-axle test rigs fit the WST1004 between the driven and driving halves to capture transient torque during shift events.
High RPM ready
Integrated into robot joint modules and collaborative robot wrists, the WST1004 closes the force-control loop for assembly, polishing and human-safe co-operation.
Joint integration
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST1004 | — | This page | Current selection |
| WST1016 | — | Torque sensor | Alternative model in the same class |
| WST1015 | — | Torque sensor | Alternative model in the same class |
| WST1014 | — | Torque sensor | Alternative model in the same class |
| WST1013 | — | Torque sensor | Alternative model in the same class |
| WST1012 | — | Torque sensor | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST1004 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST1004 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
