Torque sensor

WST1009 flange type static torque sensor 1000Nm

factory-direct torque sensor, built to the application-specific capacity and accuracy your project requires.

Get a Quote Request Datasheet
Torque range 1000～5000（N.m） Accuracy Class 0.1~0.5%F.S Sensitivity 1.0~2.0mV/V Material Alloy steel Ingress Protection IP65

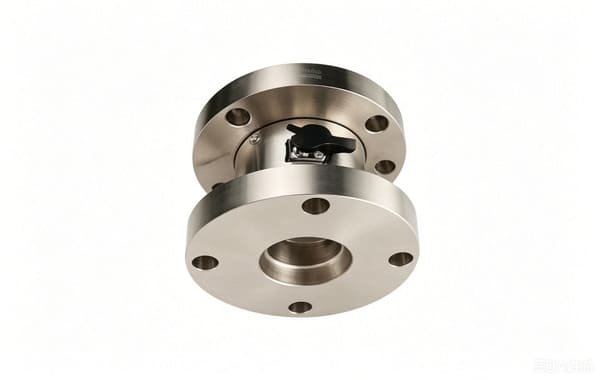

Double Flange Static torque sensor
static torque sensor
Factory overload tested
Factory-calibrated output
Sealed protection
OEM & ODM Available
Overview

What Is the WST1009 flange type static torque sensor 1000Nm?

The WST1009 is a torque sensor designed for OEM integration and custom equipment builds.

↓ See the full specifications table

WST1009 dimension drawing
WST1009 outline dimensions
In Detail

WST1009 in Detail

WST1009 flange type static torque sensor, It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department .

FEATURES

Static torque sensor，mV signal output;

Both ends are flange connection;

It is used to measure the torque value of static and discontinuous rotation in the middle and low ranges.

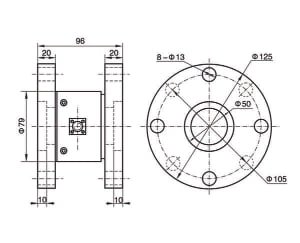

SIZE(mm)

Static torque transducer

SPECIFICATION

Technical Data

WST1009 Full Specifications

Complete technical parameters, as delivered from the factory.

WST1009 Technical Specifications
Torque range 1000～5000（N.m） Accuracy Class 0.1~0.5%F.S
Sensitivity 1.0~2.0mV/V Material Alloy steel
Ingress Protection IP65 Rated Load 1000~5000(Nm)
Operating Temp. Range -20～+65℃ Rated Output 1.0~2.0mV/V
Insulation Resistance ≥5000MΩ/100VDC Zero Output ±2.0%F.S
Safe Overload 120%F.S Creep ±0.05%F.S/30min
Electrical Interface 4pin Circular Connector Excitation, Recommended 10VDC
Cable 4-Wire Shielded Cable,φ5.0mm×3m Temp.Effect on Span ±0.05%F.S/10℃
Temp. Effect on Zero ±0.05%F.S/10℃ Input Resistance 380±10Ω or750±15Ω
Wiring Code E+:Red E-:Black Output Resistance 350±3Ω or 700±5Ω
Why the WST1009

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST1009 Works Best

Rotary Torque Measurement

In-line between motor and load, the WST1009 measures static and dynamic torque in real time — for engine test stands, pump characterisation and gearbox QC.

Shaft-rotating

Drive-train Test Rigs

Driveshaft, halfshaft and rear-axle test rigs fit the WST1009 between the driven and driving halves to capture transient torque during shift events.

High RPM ready

Robot Joint Torque Feedback

Integrated into robot joint modules and collaborative robot wrists, the WST1009 closes the force-control loop for assembly, polishing and human-safe co-operation.

Joint integration

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST1009 installation detail
WST1009 construction detail
Selection Guide

WST1009 vs Other Vektorforce Torque sensor

ModelCapacity RangeTypical ApplicationChoose When
WST1009 — This page Current selection
WST1016 — Torque sensor Alternative model in the same class
WST1015 — Torque sensor Alternative model in the same class
WST1014 — Torque sensor Alternative model in the same class
WST1013 — Torque sensor Alternative model in the same class
WST1012 — Torque sensor Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST1009

What accuracy class is the WST1009?

The WST1009 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST1009?

The WST1009 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST1009 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST1009 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST1009 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
