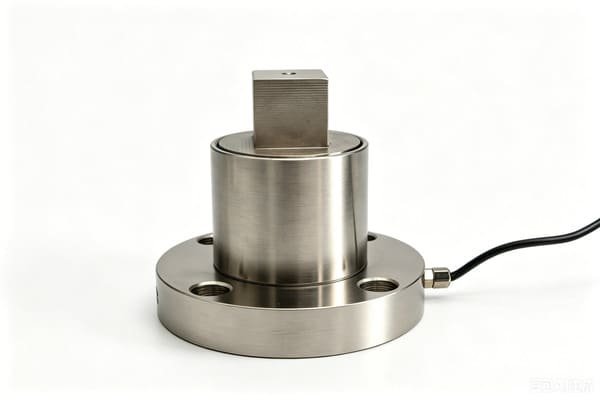

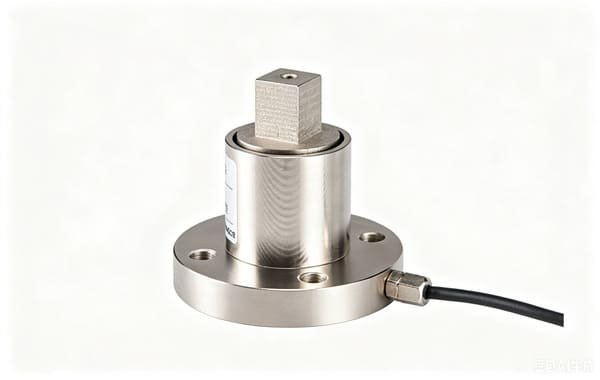

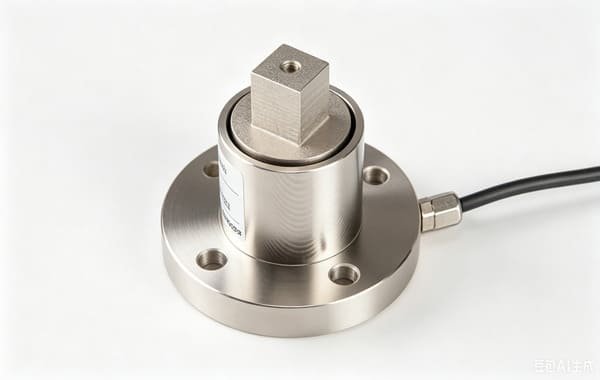

WST1010 Square Drive type Static Rotation Force Torque Sensor, It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department.
FEATURES
Static torque sensor，mV signal output;
One end is the outer square bond connection,and one end is a flange plate connection;
It is used to measure the torque value of static and discontinuous rotation in the middle and low ranges.
SIZE(mm)
| Range | Size(mm) | |||||||
| Nm | A | H1 | H2 | H3 | 中 1 | Φ2 | φ3 |
4 |
| 2～200 | 12.5 |
55 |
30 |
15 |
59 |
32 |
45 |
6.5 |
300～1500 |
25.4 |
75 |
40 |
24 |
68 |
40 |
55 |
8.5 |
2000～3000 |
25.4 |
85 |
44 |
24 |
98 |
56 |
80 |
13 |
SPECIFICATION
| Range | 2～3000(Nm) | ||
| Accuracy | ±0.3%~±0.5%F.S | Operating Temp.Range | -20～+65℃ |
| Rated Output | 1.0~1.5mV/V | Insulation Resistance | ≥5000MΩ/100VDC |
| Zero Output | ±1.0%F.S | Safe Overload | 150%F.S |
| Creep | ±0.05%F.S/30min | Electrical Interface | 200%F.S |
| Excitation,Recommended | 10VDC | Cable | 4-Wire Shielded Cable,φ3.0mm×3m |
| Temp.Effect on Span | ±0.05%F.S/10℃ | Material | Alloy steel |
| Temp.Effect on Zero | ±0.05%F.S/10℃ | Ingress Protection | IP65 |
| Input Resistance | 380±10Ω or750±30Ω | Wiring Code | E+:Red E-:Black |
| Output Resistance | 350±3Ω or 700±5Ω | S+:Green S-:White | |
