WST1011 Shaft-to-Shaft Reaction Torque Sensor

factory-direct torque sensor, built to the application-specific capacity and accuracy your project requires.

Get a Quote Request Datasheet
Rated Load 0.03Nm~20KNm Accuracy Class ±0.1%F.S,±0.2%F.S Rated Output 0.6~1.3±0.1mV/V Material Stainless steel,Aluminum Alloy Ingress Protection IP65
Static torque sensor

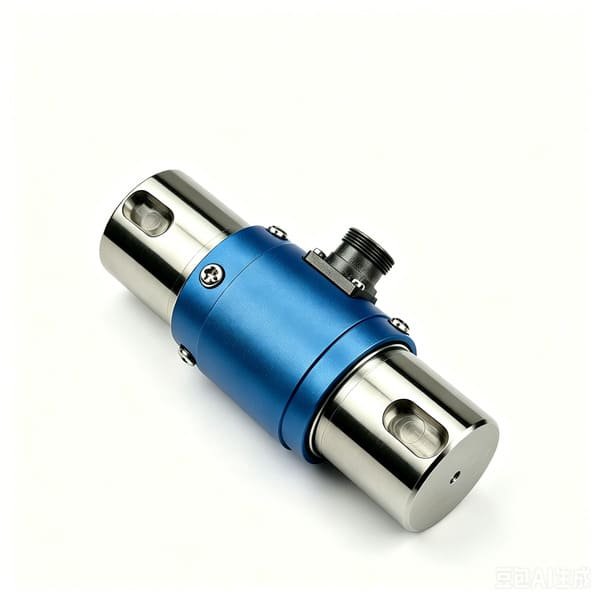

Shaft-to-Shaft Reaction Torque Sensor

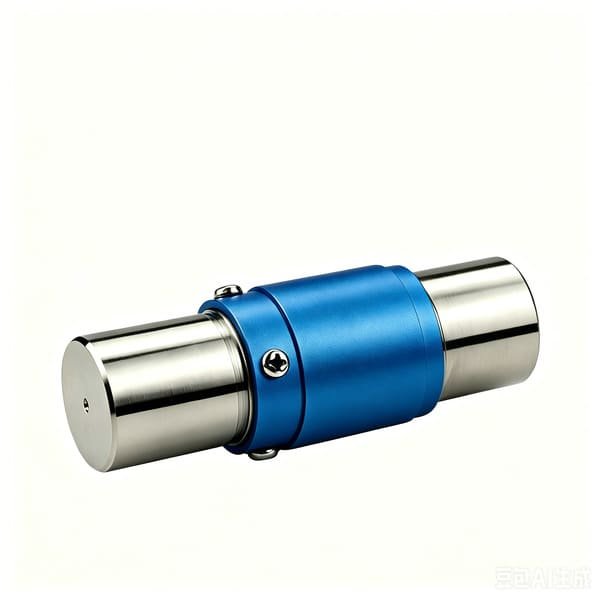

Reaction Torque Sensor
Factory overload tested
Factory-calibrated output
Sealed protection
OEM & ODM Available
Overview

What Is the WST1011 Shaft-to-Shaft Reaction Torque Sensor?

The WST1011 is a torque sensor designed for OEM integration and custom equipment builds.

↓ See the full specifications table

WST1011 dimension drawing
WST1011 outline dimensions
In Detail

WST1011 in Detail

WST1011 Shaft-to-Shaft Reaction Torque Sensor, It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department.

FEATURES

Static torque sensor，mV signal output;

Both ends are keyed connections;

It is used to measure the torque value of static and discontinuous rotation in the middle and low ranges

SIZE(mm)

Torque sensor

SPECIFICATION



Technical Data

WST1011 Full Specifications

Complete technical parameters, as delivered from the factory.

WST1011 Technical Specifications
Rated Load 0.03Nm~20KNm Accuracy Class ±0.1%F.S,±0.2%F.S
Rated Output 0.6~1.3±0.1mV/V Material Stainless steel,Aluminum Alloy
Ingress Protection IP65 Compensated Temp. Range -10～+60℃
Operating Temp. Range -20～+75℃ Zero Output ±1.0%F.S
Safe Overload 150%F.S Excitation, Recommended 5~10VDC
Ultimate Overload 200%F.S Temp.Effect on Span ±0.03%F.S/10℃
Electrical Interface 4pin Circular Connector Temp. Effect on Zero ±0.03%F.S/10℃
Cable 4-Wire Shielded Cable,φ5.0mm×3m Input Resistance 350±20Ω or700±20Ω
Output Resistance 350±10Ω or700±20Ω Wiring Code E+:Red E-:Black
Response Frequency 100us Ramge Nm / 0.03~0.05 / 0.1~5 / 10~15 / 10~100 / 200~500 / 1k / 2k~5k / 10k~20k
Size(mm) φd / 6 / 8 / 10 / 18 / 28 / 50 / 70 / 110
Why the WST1011

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST1011 Works Best

Rotary Torque Measurement

In-line between motor and load, the WST1011 measures static and dynamic torque in real time — for engine test stands, pump characterisation and gearbox QC.

Shaft-rotating

Drive-train Test Rigs

Driveshaft, halfshaft and rear-axle test rigs fit the WST1011 between the driven and driving halves to capture transient torque during shift events.

High RPM ready

Robot Joint Torque Feedback

Integrated into robot joint modules and collaborative robot wrists, the WST1011 closes the force-control loop for assembly, polishing and human-safe co-operation.

Joint integration

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST1011 installation detail
WST1011 construction detail
Selection Guide

WST1011 vs Other Vektorforce Torque sensor

ModelCapacity RangeTypical ApplicationChoose When
WST1011 — This page Current selection
WST1016 — Torque sensor Alternative model in the same class
WST1015 — Torque sensor Alternative model in the same class
WST1014 — Torque sensor Alternative model in the same class
WST1013 — Torque sensor Alternative model in the same class
WST1012 — Torque sensor Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST1011

What accuracy class is the WST1011?

The WST1011 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST1011?

The WST1011 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST1011 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST1011 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST1011 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.

Request Datasheet WhatsApp Us
Related Products

Other Torque sensor

WST1016 WST1016Torque sensor WST1015 WST1015Torque sensor WST1014 WST1014Torque sensor WST1013 WST1013Torque sensor
Get a Quote

Request Your WST1011 Quote

Tell us your capacity step, application and annual quantity. Our engineers reply with pricing, datasheet PDF and sample options within 12 hours on business days.

  • Factory-direct pricing, no middlemen
  • OEM / ODM: custom labeling, connectors, cable lengths
  • Engineering support for design-in

WhatsApp: +86 158 2902 6027

Tell Us Your Requirement

Response within 12 hours · Your data stays confidential
