factory-direct digital load cell, built to the application-specific capacity and accuracy your project requires.
The WST1206 is a digital load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

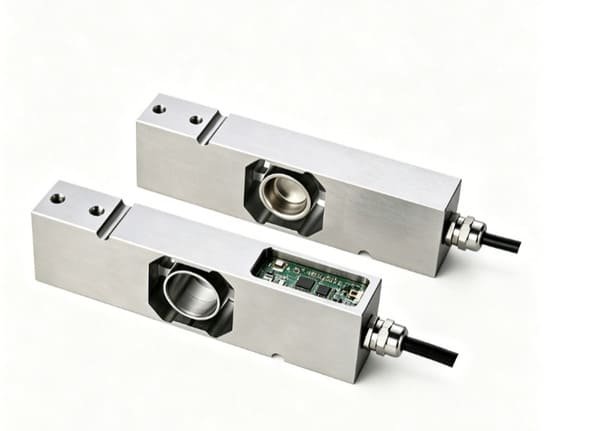

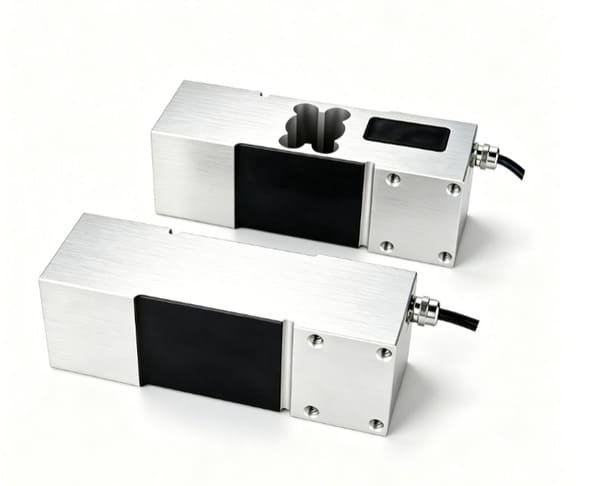

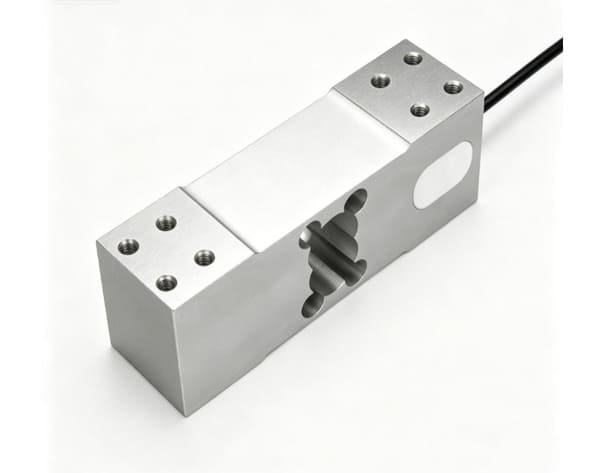

WST1206 Canbus or RS485 output signal digital single point load cell, Compared to analog sensors, this series of digital sensors primarily integrates a digital transmitter, allowing the load cells to directly output standard RS485 or Canbus digital signals. Each sensor boasts high precision and high resolution, requires no additional calibration, and can be directly used with downstream equipment.
Since eccentric load compensation is pre-installed at the factory (compliant with OIML R60 standard), installation is quick; a single sensor is sufficient to build a complete scale.
This series of sensors can be used not only in stainless steel waterproof scales, process weighing control in the chemical, food and pharmaceutical industries., but is also widely used in various smart IoT products, such as smart shelves, vending machines, and RVM (Recycling Management System) automatic recycling equipment.
FEATURES
• Material: Stainless steel
• Rated Capacities: 11kg~100kg
• OIML R60 C6 (pending), NTEP HB44, CPA C6 (pending), CE and RoHS certified
• IP Rating: IP68, IP69K
• Suitable for stainless steel waterproof scales, process weighing control in chemical, food and pharmaceutical industries.
• Max. platform size: 300x400mm
• Built-in real-time self-compensation microprocessor, high accuracy up to OIML R60 C6 and high reliability.
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST1206 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 11,22,60,100Kg | Accuracy Class | C3/C6 |
| Rated Output | Can/RS485 | Material | Stainless steel |
| Ingress Protection | IP68 | Parameter | Units |
| Model No. | WST1206 | Sensitivity at R.C. | d @R.C. |
| Accuracy class12) | C3 C6 | Min.dead load | kg |
| Zero Balance | %of Emax | Y-value | 10000 15000 |
| Repeatability Error | %of AL³ | Creep;30 minute | %of AL |
| Min.dead load output return(DR);30 min | %of AL | Min.dead load output | %of Emax/℃ |
| Temp.effect on Rated output 2) | %of AL/℃ | Compensated | ℃(F) |
| Temperature range Operating | -20 to +65[-4 to +149] | Safe storage | -40 to +80 [-40 to +176] |
| Effect of Cable Length on System Accuracy | kg | Mode | CAN |
| Communication Protocol | CANopen | Transmittion rate | 125/250 kbps |
| Effective refresh rate | HZ | 50(1piece load cell,125kbps) | 20(1piece load cell,9600bps) |
| Recommended | V DC | Excitation voltage Minimum /Maximum | 7.5/28 |
| Typical value | mA | Excitation current Max.value | 150 |
| Warm-up time | mins | Surge protective device | Integral (GDT+TVS) |
| Insulation resistance @50VDC | MΩ | Breakdown voltage | VAC |
| Type | Hermetically sealing | Protection IP rating | IP68/69K |
| Safe dynamic load | %of Emax | Load limitt Safe | 150 |
| Ultimate | 300 | Spring element | stainless steel |
| Connectors | Quick-Connect with bayonet lock,5 Pins,Glass-to-Metal seal | Material Strain gauge | PEEK |
| Cable construction | fireretardant and cold-resistant PVC,6mm O.D.;4 Conductors triple shielded wires | Max.platform size | mm |
| Eccentric error(OIML R76) | %of AL/cm | Cable Length | m |
| Weight;approx | kg | Fatigue life | times @Emax |
| Deflection at Emax;approx | mm | Barometric pressure effect on Zero Output | Vmin/kPa |
| Size /class | M6-8.8 | Fixing bolts Tightening torque | N.m |
| 10 | 15 | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
On-board ADC + digital output (RS485 / Modbus RTU / CAN) lets the WST1206 drop straight into smart weighing terminals without external instrumentation.
RS485 / Modbus
EtherNet/IP, Profinet and Modbus TCP variants of the WST1206 connect directly to plant PLCs for in-line filling, dosing and checkweighing sequences.
Profinet ready
OPC UA and MQTT variants push weight data from the WST1206 straight into MES / SCADA / cloud dashboards — no signal converter box required.
OPC UA / MQTT
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST1206 | — | This page | Current selection |
| WST1209 | 10kg~500kg | Digital load cell | Alternative model in the same class |
| WST1208 | 50/100/250/500/750Kg | Digital load cell | Alternative model in the same class |
| WST1207 | 60/100/200/300Kg | Digital load cell | Alternative model in the same class |
| WST1205 | 60,100,200,300,500,600,800,1000(Kg) | Digital load cell | Alternative model in the same class |
| WST1204 | 60,100,200,350,500(kg) | Digital load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST1206 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST1206 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
