The WST1209 is a digital load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

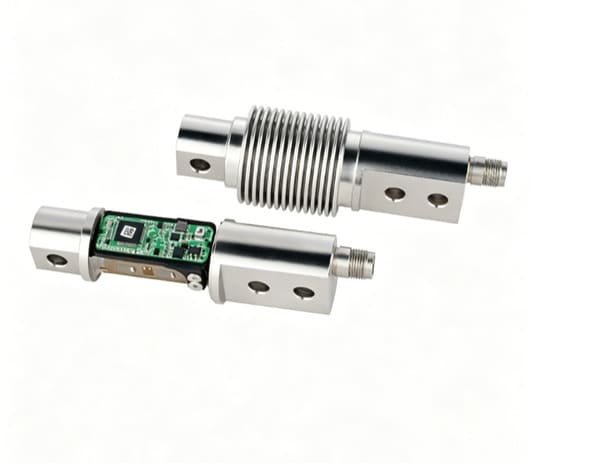

WST1209 digital bending beam load cell, The built-in microprocessor actively monitors environmental changes, continuously compensates for various performance parameters in real time, and displays the parameter status of each sensor, resulting in more accurate and stable weighing results. Constructed entirely of stainless steel, it is compact, highly precise, and suitable for various process weighing industries, such as silo scales, flat drum/trough scales, and hopper scales.
FEATURES
• Material: high-quality stainless steel
• Rated Capacities: 10kg~500kg
• CPA C8, CE and RoHS certified
• IP Rating: IP68 IP69K
• To be with dense corrugated sleeve to improve performance of low capacity
• To be with robust connector with external thread to fit cable protective tube
• Suitable for waterproof scales, process weighing equipment in Harsh working conditions
• Built-in real-time self-compensation microprocessor, high accuracy up to OIML R60 C10 and high reliability
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST1209 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 10kg~500kg | Accuracy Class | C3/C6 |
| Rated Output | Can/RS485 | Material | high-quality stainless steel |
| Ingress Protection | IP68 | Parameter | Units |
| Model No. | WST1209 | Accuracy class 12) | C3 C6 C10 |
| Min.dead load | kg | Zero Balance | %of Emax |
| Y-value | 10000 15000 22000 | Repeatability Error | %of AL³) |
| Creep;30 minute | %of AL | Min.dead load output return(DR);30 min | %of AL |
| Min.dead load output | %of Emax/℃ | Temp.effect on Rated output 12) | %of AL/℃ |
| Compensated | ℃(F) | Temperature range Operating | -20 to +65 [-4 to +149] |
| Safe storage | -40 to+80 [-40 to+176] | Effect of Cable Length on System Accuracy | 0(digital signal) |
| Mode | CAN | Communication Protocol | CANopen |
| Transmittion rate | 125/250 kbps | Effective refresh rate | HZ |
| 40(4pcs digital load cell,125kbps) | 20(4pcs digital load cell,9600bps) | Recommended | V DC |
| Excitation voltage Minimum /Maximum | 7.5/28 | Typical value | mA |
| Excitation current Max.value | 150 | Warm-up time | mins |
| Surge protective device | Integral(GDT+TVS) | Insulation resistance @50VDC | M |
| Breakdown voltage | VAC | Type | Hermetically sealing |
| Protection IP rating | IP68/69K | Safe dynamic load | %of Emax |
| Load limit Safe | 150 | Ultimate | 300 |
| Spring element | Stainless steel | Enclosure | 316 stainless steel,hermeticaly sealing |
| Material Connectors | Quick-Connect with bayonet lock,5 Pins,Glass-to-Metal seal | Strain gauge | PEEK |
| Cable construction | fireretardant and cold-resistant PVC,6mm O.D.;5 Conductors triple shielded wires | Cell to cell | m |
| Cable length Network | No Junction box | Weight;approx | kg |
| Fatigue life | times @Emax | Deflection at Emax;approx | mm |
| Barometric pressure effect on Zero Output | Vmin/kPa | Size/class | M8/A2-70 |
| Fixing bolts Tightening torque | N.m | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
On-board ADC + digital output (RS485 / Modbus RTU / CAN) lets the WST1209 drop straight into smart weighing terminals without external instrumentation.
RS485 / Modbus
EtherNet/IP, Profinet and Modbus TCP variants of the WST1209 connect directly to plant PLCs for in-line filling, dosing and checkweighing sequences.
Profinet ready
OPC UA and MQTT variants push weight data from the WST1209 straight into MES / SCADA / cloud dashboards — no signal converter box required.
OPC UA / MQTT
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST1209 | — | This page | Current selection |
| WST1208 | 50/100/250/500/750Kg | Digital load cell | Alternative model in the same class |
| WST1207 | 60/100/200/300Kg | Digital load cell | Alternative model in the same class |
| WST1206 | 11,22,60,100Kg | Digital load cell | Alternative model in the same class |
| WST1205 | 60,100,200,300,500,600,800,1000(Kg) | Digital load cell | Alternative model in the same class |
| WST1204 | 60,100,200,350,500(kg) | Digital load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST1209 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST1209 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
