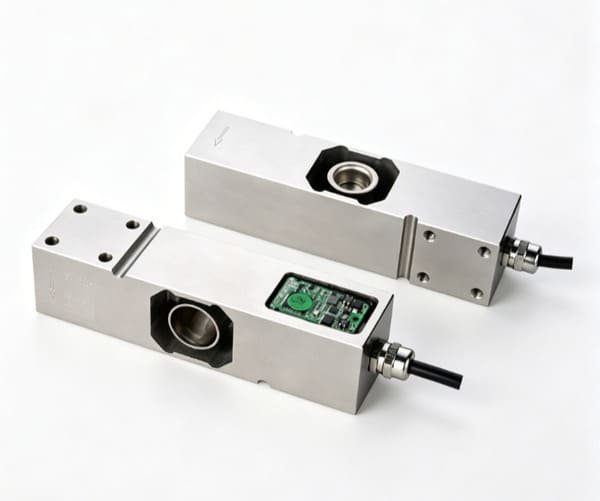

WST1207 Digital process weighing load cell, Compared to analog sensors, this series of digital sensors primarily integrates a digital transmitter, allowing the load cells to directly output standard RS485 or Canbus digital signals. Each sensor boasts high precision and high resolution, requires no additional calibration, and can be directly used with downstream equipment.
Since eccentric load compensation is pre-installed at the factory (compliant with OIML R60 standard), installation is quick; a single sensor is sufficient to build a complete scale.
This series of sensors can be used not only in stainless steel waterproof scales, process weighing control in the chemical, food and pharmaceutical industries., but is also widely used in various smart IoT products, such as smart shelves, vending machines, and RVM (Recycling Management System) automatic recycling equipment.
FEATURES
• Material: Stainless steel
• Rated Capacities: 50kg~500kg
• OIML R60 C6 (pending), NTEP HB44, CPA C6 (pending), CE and RoHS certified
• IP Rating: IP68, IP69K
• Suitable for stainless steel waterproof scales, process weighing control in chemical, food and pharmaceutical industries.
• Max. platform size: 400x500mm
• Built-in real-time self-compensation microprocessor, high accuracy up to OIML R60 C6 and high reliability.
Size(mm)
SPECIFICATION
| Parameter | Units | Specification | |||
| Model No. | WST1207 | ||||
| Rated capacity(R.C.)4) | kg | 60 | 100 | 200 | 300 |
| Sensitivity at R.C. | d @R.C. | 200,000 | |||
| Accuracy class12) | C3 C6 | ||||
| Min.dead load | kg | 0 | |||
| Zero balance | %of Emax | ±1 | |||
| Y-value | 10000 15000 | ||||
| Repeatability error | %of AL₃3 | <±0.010 <±0.005 | |||
| Creep;30 minute | %of AL | <±0.0167 <±0.0083 | |||
| Min.dead load output return(DR);30 min | %of AL | <±0.0167 <±0.0083 | |||
| Min.dead load output | %of Emax/℃ | <±0.0016 <±0.00107 | |||
| Temp.effect on Rated output 2) | %of AL/℃ | <±0.00133 <±0.00066 | |||
| Compensated | ℃(F) | -10 to +40 [+14 to +104] | |||
| Temperature range Operating | -20 to+65 [-4 to +149] | ||||
| Safe storage | -40 to+80 [-40 to +176] | ||||
| Effect of Cable Length on System Accuracy | kg | 0(Digital) | |||
| Mode | CAN | RS485 | |||
| Communication Protocol | CANopen | Modbus RTU | |||
| Transmittion rate | 125/250 kbps | 9600bps/57600bps | |||
| Effective refresh rate | HZ | 50(1piece load cell,125kbps) | 20(1piece load cell,9600bps) | ||
| Recommended | V DC | 12 or 24 | |||
| Excitation voltage Minimum /Maximum | 7.5/28 | ||||
| Typical value | mA | 20 | |||
| Excitation current Max.value | 150 | ||||
| Warm-up time | mins | 15 | |||
| Surge protective device | Integral (GDT+TVS) | ||||
| Insulation resistance @50VDC | MΩ | >5000 | |||
| Breakdown voltage | V AC | >500 | |||
| Type | Hermetically sealing | ||||
| Protection IP rating | IP68/69K | ||||
| Safe dynamic load | %of Emax | 70 | |||
| Load limit Safe | 150 | ||||
| Ultimate | 300 | ||||
| Spring element | stainless steel | ||||
| Connectors | Quick-Connect with bayonet lock,5 Pins,Glass-to-Metal seal | ||||
| Material Strain gauge | PEEK | ||||
| Cable construction | fireretardant and cold-resistant PVC,6mm O.D.;4 Conductors triple shielded wires | ||||
| Max.platform size | mm | 400*500 | |||
| Eccentric error(OIML R76) | %of AL/cm | <±0.0025 | |||
| Cable length | m | 2.5/5(standard configuration) | |||
| Weight;approx | kg | 1.5 | |||
| Fatigue life | times @Emax | >1,000,000 | |||
| Deflection at Emax;approx | mm | <0.5 | |||
| Barometric pressure effect on Zero Output | Vmin/kPa | <1.0 | |||
| Size/class | M6-8.8 | ||||
| Fixing bolts Tightening torque | N.m | 15 | |||
