Multi-axis force sensor

WST1301 3 axis Multidirection force sensor load cell 10N 50N

factory-direct multi-axis force sensor, built to the application-specific capacity and accuracy your project requires.

Get a Quote Request Datasheet
Rated Load 10,20,30,50(N) Accuracy Class ±0.2%F.S Rated Output 1.0±0.5%mV/V Material Aluminium alloy Ingress Protection IP65

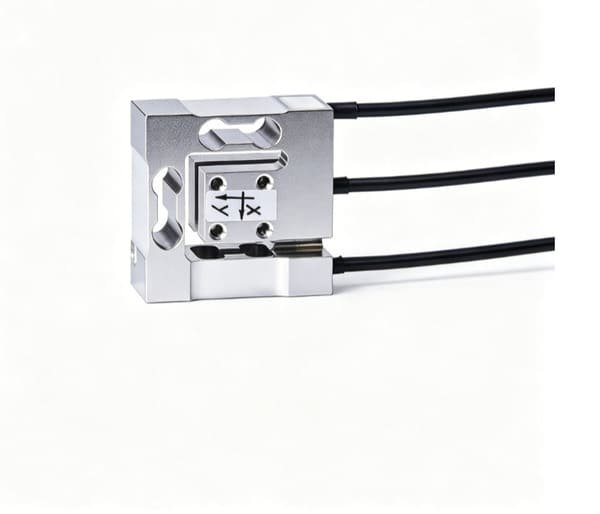

three axis load cell
3D force sensor
3 axis load cell
Factory overload tested
Factory-calibrated output
Sealed protection
OEM & ODM Available
Overview

What Is the WST1301 3 axis Multidirection force sensor load cell 10N 50N?

The WST1301 is a multi-axis force sensor designed for OEM integration and custom equipment builds.

↓ See the full specifications table

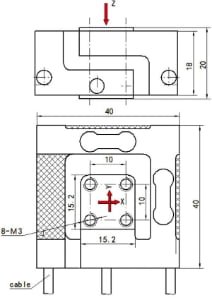

WST1301 dimension drawing
WST1301 outline dimensions
In Detail

WST1301 in Detail

WST1301 3 axis Multidirection force sensor load cell, The three-axis load cell is a specialized device used to measure forces in three different directions: X, Y, and Z axes.

Our 3D force sensor can measure forces in multiple directions in space, featuring high sensitivity and low mutual interference. It can be used for multi-directional force detection during milling and grinding processes, and for multi-axis force detection in robotic polishing, It could also use on industrial robot, mechanical arm, force measuring in a narrow space, multidirection force measuring systems.

FEATURES

Aluminum alloy,surface anodized and anticorro
Applied to three-way force measuring system

Size(mm)



Force sensor

SPECIFICATION



Technical Data

WST1301 Full Specifications

Complete technical parameters, as delivered from the factory.

WST1301 Technical Specifications
Rated Load 10,20,30,50(N) Accuracy Class ±0.2%F.S
Rated Output 1.0±0.5%mV/V Material Aluminium alloy
Ingress Protection IP65 Comprehensive Error ±0.2%F.S
Compensated Temp. Range -10～+40℃ Operating Temp Rang -35～+70℃
Zero Balance ±0.1mV/V Excitation, Recommended 5～10VDC
Linearity Error ±0.2%F.S Excitation, Maximum 18VDC
Safe Overload 150%F.S Hysteresis Error ±0.2%F.S
Insulation Resistance ≥5000MΩ(50VDC) Creep 0.2%F.S/2min
Cable 4-Wire Shielded Cable Input Resistance 350±10Ω
Cable Length φ3.8mm×2m Output Resistance 350±10Ω
Temp. Effect on Output ±0.2%F.S/10℃ Wiring Code Exc+:Red Exc-:Black
Temp. Effect on Zero ±0.2%F.S/10℃
Why the WST1301

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST1301 Works Best

Robotic Wrist Force / Torque Sensing

Bolted between robot flange and tool, the WST1301 resolves Fx/Fy/Fz plus Tx/Ty/Tz for assembly, polishing and force-controlled path-following.

6-axis F/T

Machining Centre Tool Force Feedback

On CNC spindles and boring heads, the WST1301 reports cutting forces in real time to enable adaptive feed control and tool-breakage detection.

Adaptive cutting

Wind Tunnel & Test Stand Balances

Aerodynamic test rigs and biomechanical test stands use the WST1301 as a multi-component balance — measuring forces and moments on a single compact footprint.

Force + moment

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST1301 installation detail

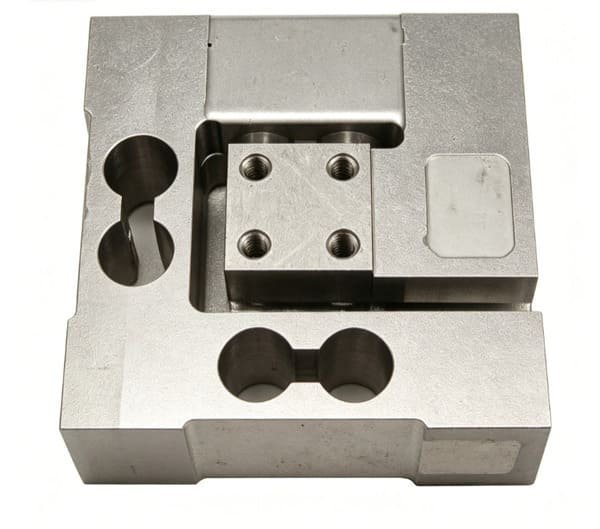

WST1301 construction detail
Selection Guide

WST1301 vs Other Vektorforce Multi-axis force sensor

ModelCapacity RangeTypical ApplicationChoose When
WST1301 — This page Current selection
WST1306 100-2000N Multi-axis force sensor Alternative model in the same class
WST1305 1000N, 10000N Multi-axis force sensor Alternative model in the same class
WST1304 30-700N Multi-axis force sensor Alternative model in the same class
WST1303 50N 150N 200N Multi-axis force sensor Alternative model in the same class
WST1302 20-500KG Multi-axis force sensor Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST1301

What accuracy class is the WST1301?

The WST1301 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST1301?

The WST1301 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST1301 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST1301 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST1301 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.

Request Datasheet WhatsApp Us
