Multi-axis force sensor

WST1302 Dual-flange Mounted multi-axis force sensor

factory-direct multi-axis force sensor, built to the application-specific capacity and accuracy your project requires.

Get a Quote Request Datasheet
Rated Load 20-500KG Accuracy Class ≤±3.0%F.S Rated Output 1.0±10%mV/V Material Stainless steel Ingress Protection IP65
Dual-flange Mounted 3D Force Sensors

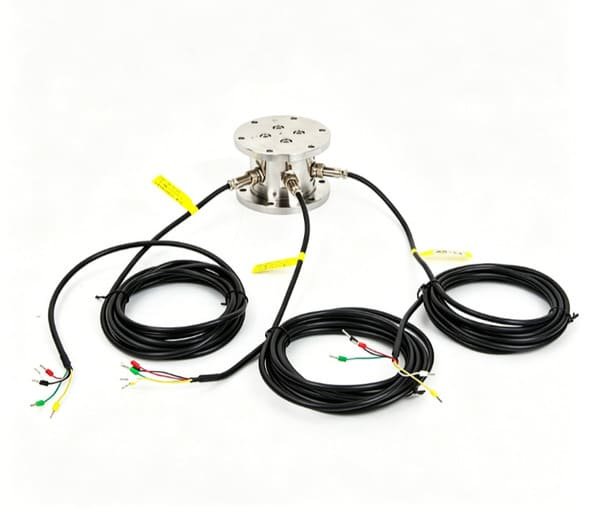

3 axis force sensor
Factory overload tested
Factory-calibrated output
Sealed protection
OEM & ODM Available
Overview

What Is the WST1302 Dual-flange Mounted multi-axis force sensor?

The WST1302 is a multi-axis force sensor designed for OEM integration and custom equipment builds.

↓ See the full specifications table

WST1302 dimension drawing
WST1302 outline dimensions
In Detail

WST1302 in Detail

WST1302 Dual-flange Mounted multi-axis force sensor, The three-axis load cell is a specialized device used to measure forces in three different directions: X, Y, and Z axes.

Our 3D force sensor can measure forces in multiple directions in space, featuring high sensitivity and low mutual interference. It can be used for multi-directional force detection during milling and grinding processes, and for multi-axis force detection in robotic polishing, It could also use on industrial robot, mechanical arm, force measuring in a narrow space, multidirection force measuring systems.

FEATURES

Three-dimensional force measurement, stainless steel structure, strong and durable.

Using gold foil strain gauge technology, small mutual interference error.

Widely used in industry, R & D and other fields of measurement and control.

Size(mm)

SPECIFICATION

Technical Data

WST1302 Full Specifications

Complete technical parameters, as delivered from the factory.

WST1302 Technical Specifications
Rated Load 20-500KG Accuracy Class ≤±3.0%F.S
Rated Output 1.0±10%mV/V Material Stainless steel
Ingress Protection IP65 Comprehensive Error ≤±3.0%F.S
Operating Temp. Range -20～+80℃ Excitation, Recommended 5～12VDC
Zero Balance ±2.0%F.S Safe Overlaod 120%F.S
Linearity Error ±1.0%F.S Ultimate Overload 200%F.S
Creep ±0.05%F.S/30min Insulation Resistance ≥5000MQ(100VDC)
Input Resistance 385±30Ω Cable 4-Wire Shielded Cable
Output Resistance 350±5Ω Cable Length ①5mm×3m
Temp.Effect on Span ±0.5%F.S/10℃ Temp. Effect on Zero ±0.5%F.S/10℃
Wiring Code Exc+:Red Exc-:Black Compensated Temp. Range -10～+60℃
Why the WST1302

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST1302 Works Best

Robotic Wrist Force / Torque Sensing

Bolted between robot flange and tool, the WST1302 resolves Fx/Fy/Fz plus Tx/Ty/Tz for assembly, polishing and force-controlled path-following.

6-axis F/T

Machining Centre Tool Force Feedback

On CNC spindles and boring heads, the WST1302 reports cutting forces in real time to enable adaptive feed control and tool-breakage detection.

Adaptive cutting

Wind Tunnel & Test Stand Balances

Aerodynamic test rigs and biomechanical test stands use the WST1302 as a multi-component balance — measuring forces and moments on a single compact footprint.

Force + moment

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST1302 installation detail
WST1302 construction detail
Selection Guide

WST1302 vs Other Vektorforce Multi-axis force sensor

ModelCapacity RangeTypical ApplicationChoose When
WST1302 — This page Current selection
WST1306 100-2000N Multi-axis force sensor Alternative model in the same class
WST1305 1000N, 10000N Multi-axis force sensor Alternative model in the same class
WST1304 30-700N Multi-axis force sensor Alternative model in the same class
WST1303 50N 150N 200N Multi-axis force sensor Alternative model in the same class
WST1301 10,20,30,50(N) Multi-axis force sensor Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST1302

What accuracy class is the WST1302?

The WST1302 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST1302?

The WST1302 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST1302 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST1302 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST1302 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
