What Is the WST611 Donut Washer Type Load Cell 100KN 200KN?

The WST611 is a miniature force sensor designed for OEM integration and custom equipment builds.

↓ See the full specifications table

WST611 dimension drawing
WST611 outline dimensions
In Detail

WST611 in Detail

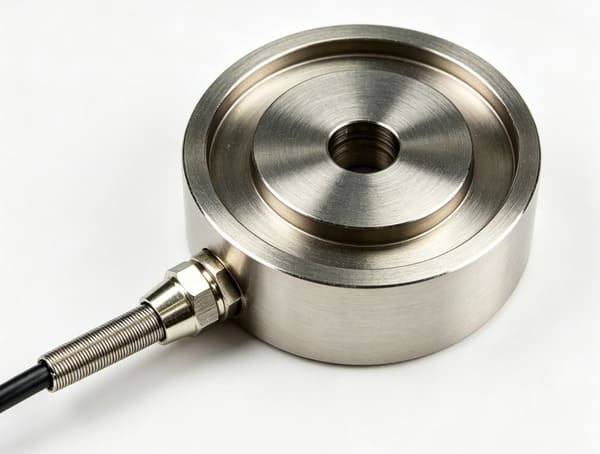

WST611 Donut Washer Type Load Cell, is a variation of a low profile compression load cell and features a compact, smooth thru-hole design for use in applications which require the load structure to pass thru the sensor. It is made of stainless steel, Mainly use to measure compression force, It is suitable for force measurement with limited space. The micro force sensor is commonly used in some fatigue tests, strength tests or laboratory occasions,industrial robot, industrial automation device, test machines, and other smart projects.

Through Hole load cell

Technical Data

WST611 Full Specifications

Complete technical parameters, as delivered from the factory.

WST611 Technical Specifications
Rated Load 10-200KN Material stainless steel
Rated Output 1.5±5%mv/v Accuracy Class ±0.5%F.S
Ingress Protection IP66 Comprehensive Error ≤±0.5%F.S
Compensated Temp. Range -10～+60℃ Operating Temp. Range -20～+80℃
Zero Balance ±2.0%F.S Excitation, Recommended 9～15V
Linearity Error 0.5%F.S Safe Overload 150%F.S
Creep ±0.5%F.S/30min UItimate Overload 200%F.S
Input Resistance 780±20Ω Insulation Resistance ≥5000MΩ(100VDC)
Output Resistance 700±10Ω Temp.Effect on Span ±0.05%F.S/10℃
Wiring Code Exc+:Red Exc-:Black Temp. Effect on Zero ± 0.05%F.S/10℃
Why the WST611

Performance That Matters to Equipment Builders

OEM

Factory-Direct Supply

Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.

12h

Fast Engineering Response

Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.

100%

Inspected Before Shipment

Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.

Applications

Where the WST611 Works Best

Miniature Press Force Monitoring

Embedded in miniature assembly machines and micro-press stations, the WST611 returns millinewton-resolution reaction force without enlarging the tool envelope.

multiple capacity options range

Robot End-effector Tactile Sensing

Mounted at the wrist or fingertip, the WST611 gives collaborative and surgical robots a sense of touch — enabling delicate pick-and-place and assembly verification.

Miniature envelope

Medical Device Force Feedback

Inside disposable and reusable medical devices the WST611 monitors injection, occlusion and contact forces, supporting closed-loop safety logic.

Biocompatible option

Installation

Wiring & Installation Reference

4-Wire Connection

FunctionWire Color
Excitation + (Exc+)Red
Excitation − (Exc−)Black
Signal + (Sig+)Green
Signal − (Sig−)White

Electrical Notes

  • Shielded cable; keep away from motor/power runs, ground the shield at the indicator side

Mounting Checklist

  1. Mount on a rigid, flat base
  2. Torque mounting screws evenly; avoid over-torque that preloads the measuring element
  3. Keep the load applied through the intended loading axis; verify alignment before calibration
  4. Verify zero balance before calibration, then calibrate with certified test weights
WST611 installation detail
WST611 construction detail
Selection Guide

WST611 vs Other Vektorforce Miniature force sensor

ModelCapacity RangeTypical ApplicationChoose When
WST611 — This page Current selection
WST617 5-2000N Miniature force sensor Alternative model in the same class
WST616 1-30KN Miniature force sensor Alternative model in the same class
WST615 20-2000N Miniature force sensor Alternative model in the same class
WST614 10-500N Miniature force sensor Alternative model in the same class
WST613 20-5000N Miniature force sensor Alternative model in the same class

Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.

FAQ

Frequently Asked Questions About the WST611

What accuracy class is the WST611?

The WST611 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.

What capacities are available for the WST611?

The WST611 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.

What does the protection rating mean in practice?

Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.

What output signal does the WST611 provide?

It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.

How is the WST611 wired?

Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.

How do I get a quote, samples or the datasheet PDF?

Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

Need the complete WST611 datasheet PDF?

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.

Request Datasheet WhatsApp Us
