factory-direct weighing module, built to the application-specific capacity and accuracy your project requires.
The WST804 is a weighing module. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

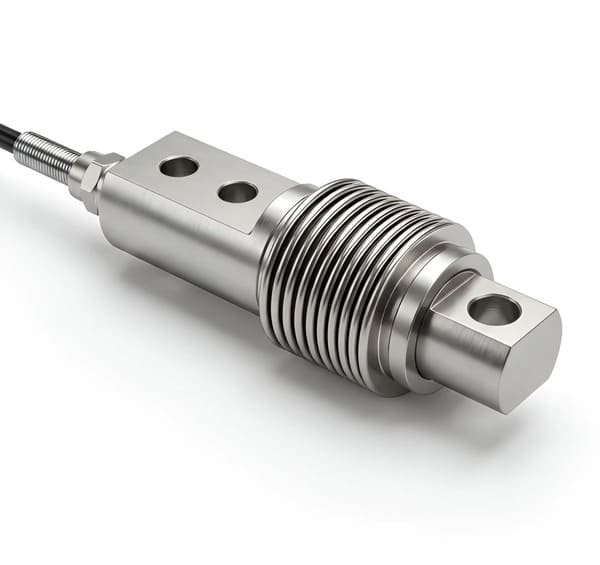

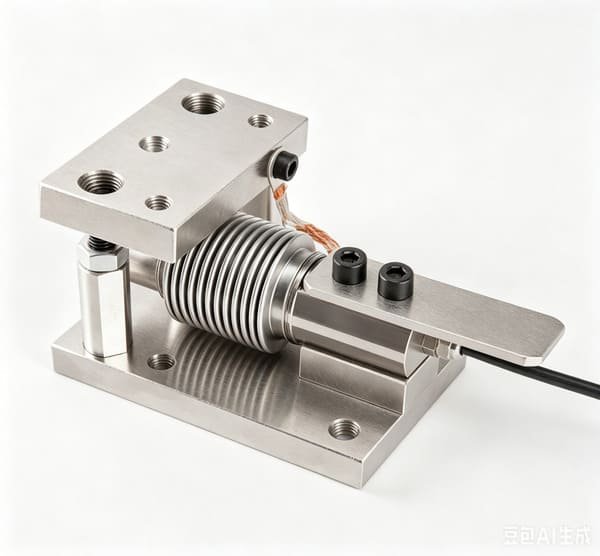

WST804 hopper scale or small tank weighing system use bellows type load cell weighing module, A weighing module is essentially an industrial weighing element that integrates a load cell, connectors, mounting plate, and other components into a single unit. It allows for the easy conversion of equipment such as hoppers and reaction vessels into precise weighing systems. Its development not only preserves the high accuracy and stability of the load cell but also eliminates weighing errors caused by improper installation.
The weighing module has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
Complete technical parameters, as delivered from the factory.
| WST804 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 10-500kg | Material | Alloy steel or stainless steel |
| Rated Output | 2.0mv/v | Accuracy Class | ±0.02-0.05%F.S |
| Ingress Protection | IP65 | Comprehensive Error | ±0.02～0.05%F.S |
| Excitation, Recommended | 10VDC | Safe Overload | 150%F.S |
| Zero Balance | ±1%F.S | UItimate Overload | 200%F.S |
| Creep | ±0.02%F.S/30min | Insulation Resistance | ≥5000MΩ(50VDC) |
| Input Resistance | 380±10Ω | Cable | 4-Wire Shielded Cable |
| Output Resistance | 350±3Ω | Cable Length | 3m |
| Temp. Effect on Output | ±0.02%F.S/10℃ | Temp. Effect on Zero | ±0.02%F.S/10℃ |
| Wiring Code | Exc+:Red Exc-:Black | Operating Temp. Range | -20～+65℃ |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Self-aligned, lift-off protected modules integrate the WST804 into a self-contained mounting kit — drop onto legs of any tank, hopper or reactor and start weighing.
Drop-in kit
Pre-engineered silicone-pad or rocker-pin kits pair three or four WST804 units with a junction box — for a complete silo weighing installation.
3- or 4-point
Pharmaceutical, food and chemical reactors mount on weigh modules built around the WST804 — giving direct net-weight readout for batch control and inventory.
Sanitary option
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST804 | — | This page | Current selection |
| WST809 | 2~100 kN | Weighing module | Alternative model in the same class |
| WST808 | 150～3000(kN) | Weighing module | Alternative model in the same class |
| WST807 | 3～100(kN) | Weighing module | Alternative model in the same class |
| WST806 | 2~100 kN | Weighing module | Alternative model in the same class |
| WST805 | 3Ton 5Ton | Weighing module | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST804 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST804 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
