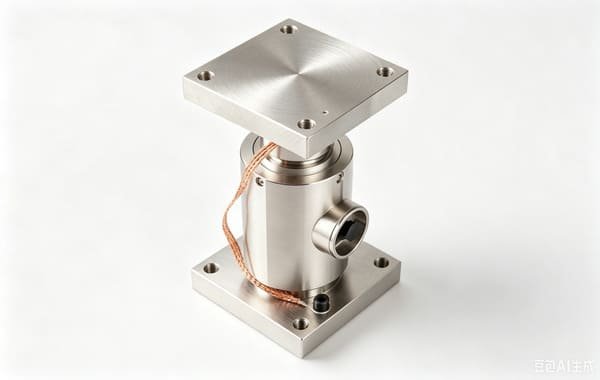

WST808 column type load cell weighing module, A weighing module is essentially an industrial weighing element that integrates a load cell, connectors, mounting plate, and other components into a single unit. It allows for the easy conversion of equipment such as hoppers and reaction vessels into precise weighing systems. Its development not only preserves the high accuracy and stability of the load cell but also eliminates weighing errors caused by improper installation.
The weighing module has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
| Rated Load | 150～3000(kN) | ||
| Comprehensive Error | ±0.05～0.1%F.S | Excitation,Recommended | 10VDC |
| Rated Output | 2.0mV/V | Safe Overload | 150%F.S |
| Zero Balance | ±1%F.S | Ultimate Overload | 200%F.S |
| Creep | ±0.05%F.S/30min | Insulation Resistance | ≥5000MΩ(50VDC) |
| Input Resistance | 380±10Ω | Cable | 4-Wire Shielded Cable |
| Output Resistance | 350±3Ω | Cable Length | <5t,3m;≥5t,6m |
| Temp.Effect on Output | ±0.03%F.S/10℃ | Ingress Protection | IP68 |
| Temp.Effect on Zero | ±0.03%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Operating Temp.Range | -20～+65℃ | Sig+:Green Sig-:White | |
