The WST809 is a weighing module. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

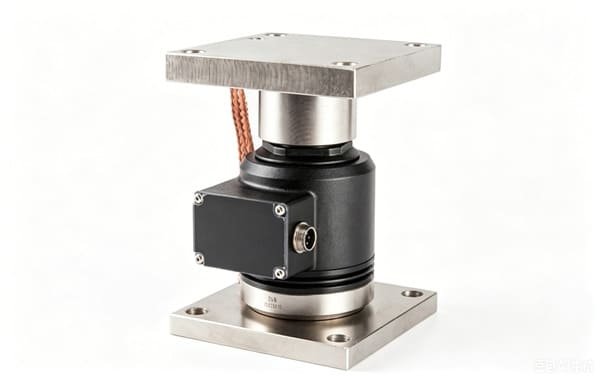

WST809 material tank weighing system use column type load cell weighing module, A weighing module is essentially an industrial weighing element that integrates a load cell, connectors, mounting plate, and other components into a single unit. It allows for the easy conversion of equipment such as hoppers and reaction vessels into precise weighing systems. Its development not only preserves the high accuracy and stability of the load cell but also eliminates weighing errors caused by improper installation.

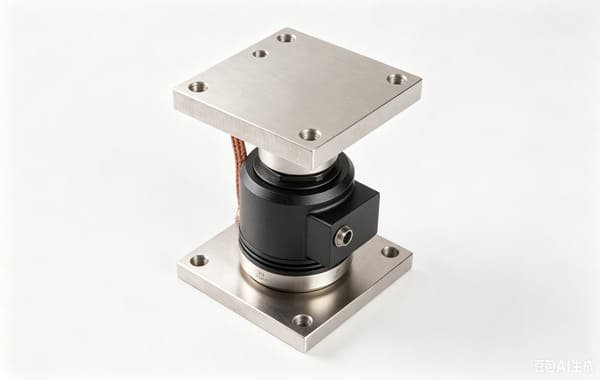

The weighing module has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
Complete technical parameters, as delivered from the factory.
| WST809 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 2~100 kN | Material | Alloy steel or stainless steel |
| Rated Output | 2.0 mV/V | Accuracy Class | 0.05-0.1% FS |
| Ingress Protection | IP68 | Comprehensive Precision | 0.05% FS |
| Sensitivity | 2.0 mV/V | Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS | Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ | Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±10 Ω | Output Resistance | 350± 3 Ω |
| Insulation Resistance | ＞5000 MΩ | Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC | Load Cell Mode Of Connection | Input+: Red |
