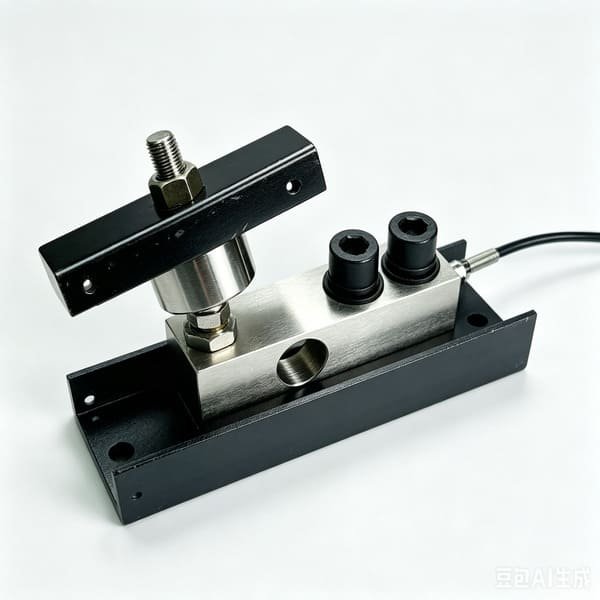

WST805 silo use shear beam load cell weighing module, A weighing module is essentially an industrial weighing element that integrates a load cell, connectors, mounting plate, and other components into a single unit. It allows for the easy conversion of equipment such as hoppers and reaction vessels into precise weighing systems. Its development not only preserves the high accuracy and stability of the load cell but also eliminates weighing errors caused by improper installation.
The weighing module has an automatic centering function, anti-eccentric load, and is easy to install. Widely used in belt scale, hopper scale, warehouse-scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.
| Rated capacity | 3t,5t | ||
| Accuracy class | C3 | Temp.effect on zero | ±0.02%F.S/10℃ |
| Comprehensive error | ±0.02%F.S | Input resistance |
375±10Ω |
| Rated output | 2.0±0.04mV/V | Output resistance |
350±3Ω |
| Non-lineartiy | 0.02%F.S | Insulation resistance | ≥5000MΩ(100VDC) |
Repeatability |
0.0016%F.S |
Use temp.range |
-35～+80℃ |
| Hysteresis | 0.02%F.S |
Compensated temp.range |
-10～+40℃ |
| Creep | ±0.02%F.S/30min | Excitation voltage |
5-12VDC |
| Zero balance | ±1.0%F.S | Safe overload | 150%F.S |
| Temp.effect on span | ±0.016%F.S/10℃ | Ultimate overload | 200%F.S |
