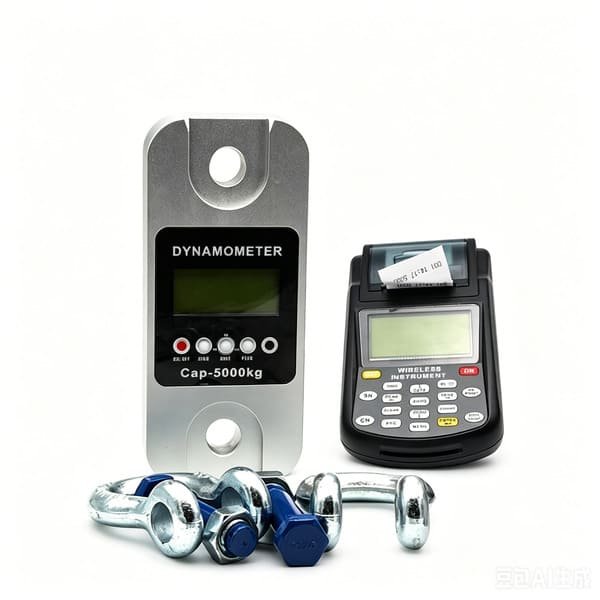

WST902 wireless dynamometer load link with handheld display, Wireless dynamometer is an extremely well-built instrument for industry
use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, Wireless dynamometer is the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case,easy to carry, suitable for protected outdoor use, calibration is easier with 580 indicator.
FEATURES
Body protection :Aluminum and alloy steel capacities are powder coated
Accuracy :0.05% for 1-50t, 0.1% for above 50t capacity .
Units :Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short
Tons(t) pounds(lb), Newton and kilonewton(kN) .
Shackles :High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation :The acceleration of gravity can be regulated through indicator according to different places value
Functions :wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning.
User calibration(with password) .
Set-Point :Two user programmable Set-Point can be used for safety and warning applications or for limit weighing
Package :Packed with carry case, easy to bring .
Indicator RS-232 communication :Print or exact data easily. Continuous output can drive a scoreboard.
Indicator key :4 local mechanical keys:“ON/OFF”,“ZERO”,“PEAK”and “Unit Change”.
.
Indicator communications:Both RS232 serial port and USB port，solve most laptops without serial port problem .
Antenna :Internal antenna
Function on indicator keyboard :It can print data,time,Serial number, commodity number,net weight and total weight.
Also can input 16 digits head information, It can store up to 2000 weighing records. It can be statistics by serial
number or commodity number ，also can statistics by data, statistical results can be printed with weighing number
and total weight.
SPECIFICATIONS
| Body display | 25mm(1”)5digits LCD with backlight |
| Indicator display | 25mm(1”)5digits LCD with backlight |
| Power on zero range | 20%F.S. |
| Manual zero Range | 4%F.S. |
| Tare range | 20%F.S. |
| Stable time | ≤5 seconds |
| Overload indication | 100%F.S.+9e |
| Max.safety load | 125%F.S. |
| Ultimate load | 400%F.S. |
| Battery life | ≥50 hours |
| Body battery | “LR6(AA)”size alkaline batteries.1.5V×3 |
| Indicator battery | Rechargeable Ni-H battery,SC 3.5Ah |
| Operating temp. | -20℃~+50℃ |
| Operating humidity | ≤85%RH under 20℃ |
| Indicator printer | FUJITSU FTP-628 MCL101#50″high speed thermal printer |
| Wireless distance | Min.80m(default)[200m(optional)] |
| Wireless frequency | 2.4GHz(default),433MHz,868MHz(optional),up to 128 channels available |
Size Chart(mm)：
| MODEL | CAP(t) | Div(kg) | A | B | C | D | 中 | H | Material |
| WST902-1t | 1 | 0.5kg | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| WST902-2t | 2 | 1kg | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| WST902-3t | 3 | 1kg | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| WST902-5t | 5 | 2kg | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| WST902-10t | 10 | 5kg | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| WST902-20t | 20 | 10kg | 375 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| WST902-30t | 30 | 10kg | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| WST902-50t | 50 | 20kg | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| WST902-100t | 100 | 50kg | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| WST902-200t | 200 | 100kg | 720 | 265 | 183 | 440 | 280 | 1362 | Alloy Steel |
Weight：
| Model | WST902-1t | WST902-2t | WST902-3t | WST902-5t | WST902-10t |
| Unit Weight(kg) | 1.6 | 2.1 | 2.1 | 2.7 | 10.4 |
| Weight with shackles(kg) | 3.1 | 4.6 | 4.6 | 6.3 | 24.8 |
| Model | WST902-20t | WST902-30t | WST902-50t | WST902-100t | WST902-200t |
| Unit Weight(kg) | 17.8 | 25 | 39 | 81 | 210 |
| Weight with shackles(kg) | 48.6 | 73 | 128 | 321 | 776 |
