factory-tuned micro load cell for hanging scale or luggage scale OEM integration.
The WST112 is a micro load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

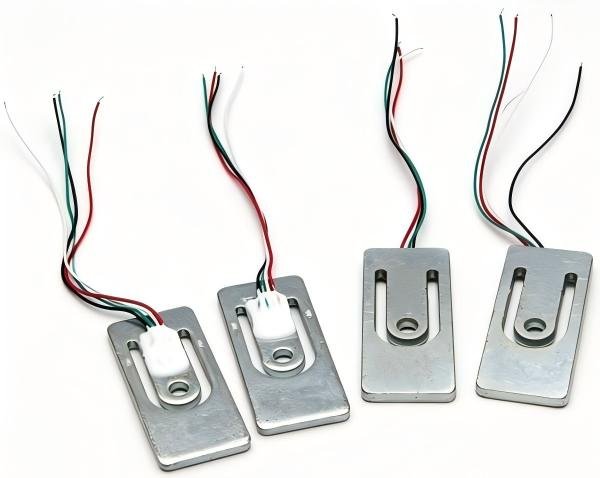

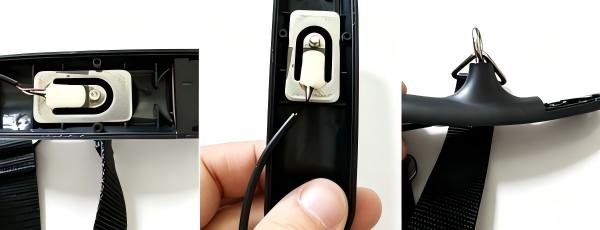

WST112 flat mini load cell weight sensor for hanging scale or luggage scale
Material:manganese steel,surface anodic oxidation treatment;
Full bridge, four wires;
Applic ation:portable scale, hanging scale, luggage scale and other miniature electronic weighing equipment.
SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST112 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 10Kg 20kg 30kg 40kg | Dimensions | 45*19*2.5mm |
| Accuracy Class | 0.2%F.S | Rated Output | 1.1±0.1mv/v |
| Material | manganese steel (65Mn) | Zero Balance | ±0.5mV/V |
| Input Resistance | 1000±50Ω | Comprehensive Error | 0.2%F.S |
| Output Resistance | 1000±300 | Non-linearity | 0.2%F.S |
| Insulation Resistance | ≥2000MΩ | Repeat-ability | 0.2%F.S |
| Excitation, Recommended | 3-10VDC | Hysteresis | 0.2%F.S |
| Temp.range | -10~+40℃ | Creep | 0.2%F.S/3min |
| Safe Overload | 120%F.S | Temp. Effect on Zero | ±0.3%F.S/10℃ |
| Ultimate Overload | 150%F.S | Temp.effect on span | ±0.1%F.S/10℃ |
| Defend grade | IP65 | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
The core sensor in commercial price-computing scales and kitchen scales. Low-profile metal-alloy body accepts off-center loads with little deflection.
Low capacity multiple capacity options
Battery-powered pocket balances, jewellery scales and portable weighing tools fit the WST112 into compact housings without sacrificing stability.
OIML-grade reading
Inline force feedback for medical infusion pumps, laboratory force-test fixtures and small press-in assemblies — anywhere a low-capacity accurate load read is needed.
IP-rated sealed
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST112 | — | This page | Current selection |
| WST111 | 5,10,20,30,40,50(kg) | Micro load cell | Alternative model in the same class |
| WST110 | 100,200,300,500,750(g) | Micro load cell | Alternative model in the same class |
| WST109 | 300,500,750,1000,2000,3000,5000(g) | Micro load cell | Alternative model in the same class |
| WST108 | 20,30,50,100,200(g) | Micro load cell | Alternative model in the same class |
| WST107 | 3,5,10,15,20,25,30,40,50(kg) | Micro load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST112 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST112 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
