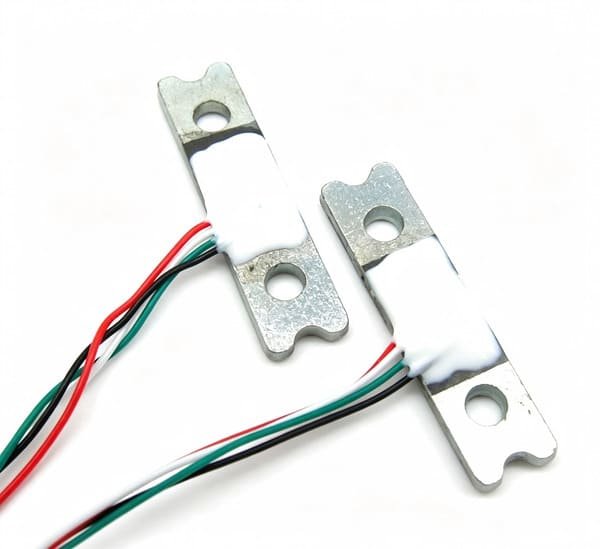

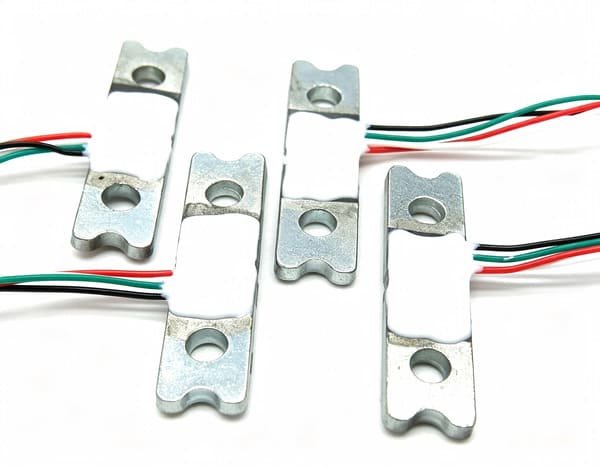

WST111 Flat micro load cell weight sensor for luggage scale
FEATURES
Made of manganese steel (65Mn), sealed with silicone, and surface-plated with environmentally friendly zinc plating;
Each unit is a full-bridge, four-wire system (red, black, green, and white);
This product is mainly suitable for fishing scales, handheld scales, and other miniature electronic weighing equipment.
SIZE(mm)
| Rated Load(kg) | 5 | 10 | 20 | 30 | 40 | 50 |
| h(mm) | 1.0 | 1.0 | 1.5 | 2.0 | 2.5 | 2.5 |
| Rated Output(mV/V) | 0.95 | 1.9 | 1.9 | 1.7 | 1.5 | 1.9 |
SPECIFICATION
| Rated Load | 5,10,20,30,40,50(kg) | ||
| Comprehensive Error | ±0.2%F.S | Operating Temp.Range | -10～+40℃ |
| Rated Output | 0.6～1.5±0.15mV/V | Excitation,Recommended | 5VDC |
| Zero Balance | ±0.3mV/V | Excitation,Maximum | 3～10VDC |
| Linearity Error | ±0.2%F.S | Safe Overload | 120%F.S |
| Repeatability Error | ±0.2%F.S | Ultimate Overload | 150%F.S |
| Hysteresis Error | ±0.2%F.S | Insulation Resistance | ≥2000MΩ(50VDC) |
| Creep | ±0.1%F.S/3min | Cable | 4 Color PVC Wires |
| Input Resistance | 1000±10%Ω | Cable Length | φ0.8×110mm |
| Output Resistance | 1000±10%Ω | Ingress Protection | IP65 |
| Temp.Effect on Output | ±0.2%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Temp.Effect on Zero | ±0.3%F.S/10℃ | Sig+:Green Sig-:White | |
