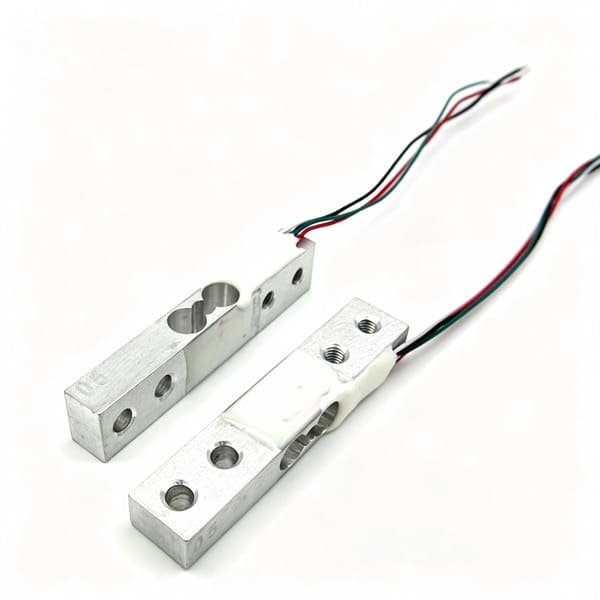

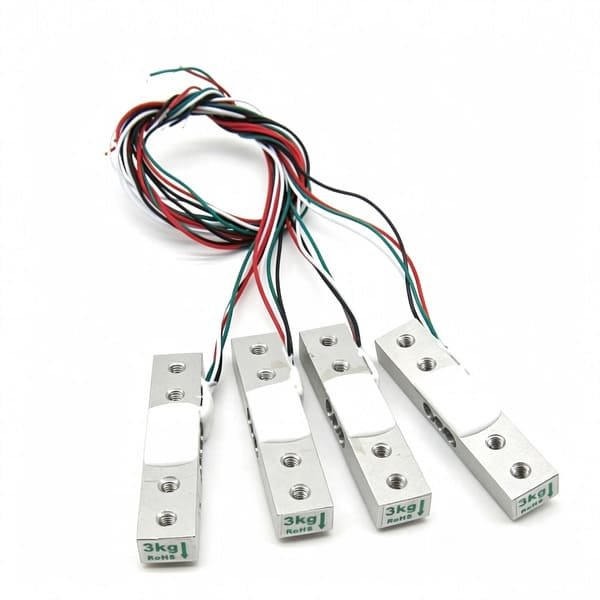

WST109 Micro load cell force sensor for 3D printer or coffee scale.
Aluminum alloy material, silicone seal, surface anodized treatment;
Application: Pocket scale, water cooler scale, kitchen scale, coffee scale and other electronic weighing equipment.
SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST109 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 300,500,750,1000,2000,3000,5000(g) | Dimensions | 45*6*B(mm) |
| Accuracy Class | ±0.05%F.S | Rated Output | 0.7~1.0±0.15mV/V |
| Material | Aluminum alloy | Comprehensive Error | ±0.05%F.S |
| Operating Temp. Range | -10~+40℃ | Excitation, Recommended | 5VDC |
| Zero Balance | ±0.1mV/V | Excitation, Maximum | 3~10VDC |
| Linearity Error | ±0.05%F.S | Safe Overload | 120%F.S |
| Repeatability Error | ±0.05%F.S | Ultimate Overload | 150%F.S |
| Hysteresis Error | ±0.05%F.S | Insulation Resistance | ≥2000MΩ(50VDC) |
| Creep | ±0.1%F.S/3min | Cable | 4 Color PVC Wires |
| Input Resistance | 1000±10Ω | Cable Length | φ0.6×110mm |
| Output Resistance | 1000±10Ω | Ingress Protection | IP65 |
| Temp. Effect on Output | ±0.05%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Temp. Effect on Zero | ±0.2%F.S/10℃ | ||
