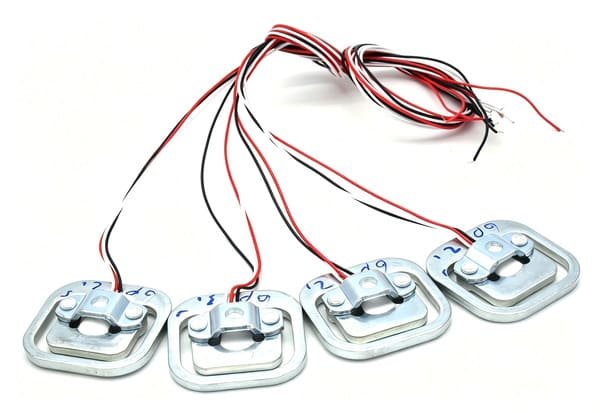

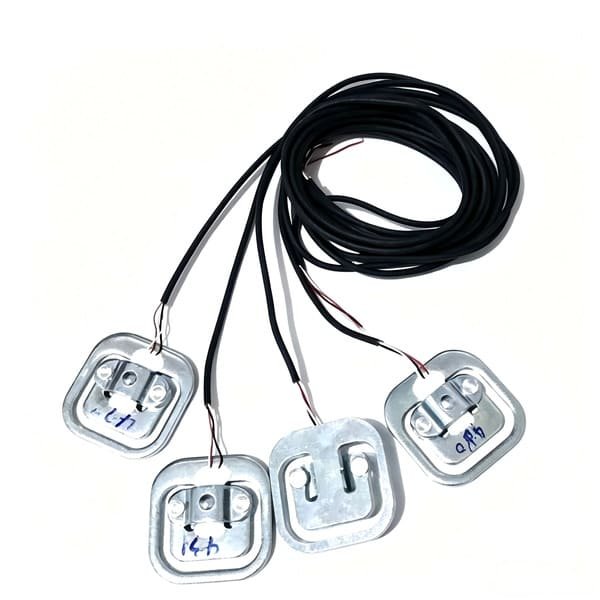

WST105 Low price body scale use half bridge miniature load cell weight sensor 50kg 200kg. This kind half bridge load cell, Normally 4pcs work together.
FEATURES
Manganese steel(65 Mn),surface galvanizing;
Half bridge, three-wire(red,black,white), four pcs in a set;
Application:body scale and other miniature electronic weighing equipment.
SIZE(mm)
| Rated Load(kg) | 10 | 30 | 50 | 75 | 100 |
| h1(mm) | 1.5 | 2.0 | 2.5 | 3.0 | 3.0 |
| h(mm) | 6.8 | 7.3 | 7.8 | 8.3 | 8.3 |
| Rated output(mV/V) | 0.7 | 1.0 | 1.3 | ||
SPECIFICATION
| Rated Load(single) | 10,30,50,75,100(kg) | ||
| Comprehensive Error | ±0.3%F.S | Operation Temp.Range | -10~+40℃ |
| Rated Output | 0.7～1.3±0.15mV/V | Excitation,Recommended | 5VDC |
| Zero Balance | ±0.3mV/V | Operating Voltage | 3～10VDC |
| Linearity Error | ±0.2%F.S | Safe Overload | 120%F.S |
| Repeatability Error | ±0.2%F.S | Limit Overload | 150%F.S |
| Hysteresis Error | ±0.2%F.S | Insulation Resistance | ≥2000MΩ( 50VDC) |
| Creep | ±0.2%F.S/3min | Cable | Three Color PVC Wires |
| Input Resistance | 1000±10Ω | Cable,Length | φ0.8×420mm |
| Output Resistance | 1000±10Ω | Ingress Protection | IP65 |
| Temp.Effect on Output | ±0.3%F.S/10℃ | Four-angle Error | 1.0%F.S |
| Temp.Effect on Zero | ±0.3%F.S/10℃ | Wiring Code | Common:Red;S+:Black;S-:White |
