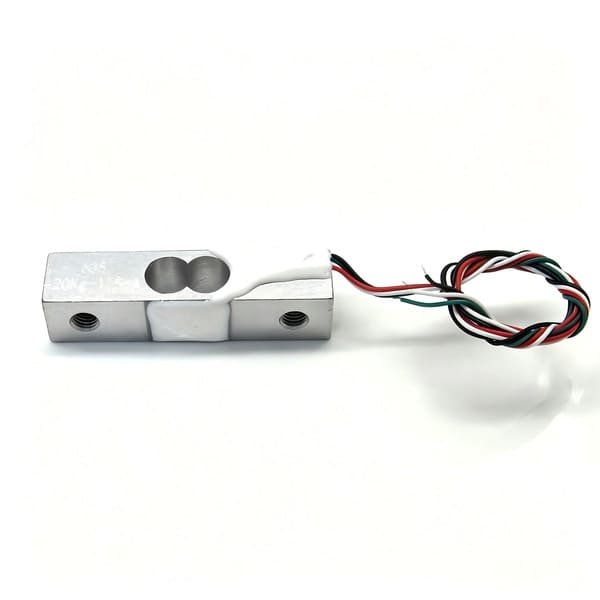

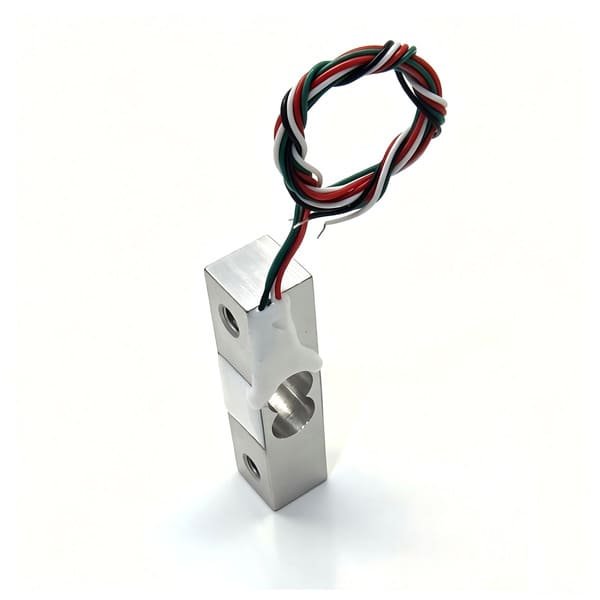

WST107 Miniature load cell for syringe pumps.
FEATURES
Aluminum alloy,surface anodic oxidation treatment;
Application:Pocket scale,kitchen scale and other miniature electronic weighing equipment.
SIZE(mm)
SPECIFICATION
| Rated Load | 3,5,10,15,20,25,30,40,50(kg) | ||
| Comprehensive Error | ±0.05%F.S | Operating Temp.Range | -10～+40℃ |
| Rated Output | 1.0±0.15mV/V | Excitation,Recommended | 5VDC |
| Zero Balance | ± 0.1mV/V | Excitation,Maximum | 3～10VDC |
| Linearity Error | ±0.05%F.S | Safe Overload | 120%F.S |
| Repeatability Error | ±0.05%F.S | Ultimate Overload | 150%F.S |
| Hysteresis Error | ±0.05%F.S | Insulation Resistance | ≥2000MΩ(50VDC) |
| Creep | ±0.05%F.S/3min | Cable | 4 Color PVC Wires |
| Input Resistance | 1090±10Ω | Cable Length | φ0.8×220mm |
| Output Resistance | 1000±10Ω | Ingress Protection | IP65 |
| Temp.Effect on Output | ±0.05%F.S/10℃ | Wiring Code | Exc+:Red Exc-:Black |
| Temp.Effect on Zero | ±0.5%F.S/10℃ | Sig+:Green Sig-:White | |
