factory-tuned micro load cell for jewelry scale OEM integration.
The WST108 is a micro load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

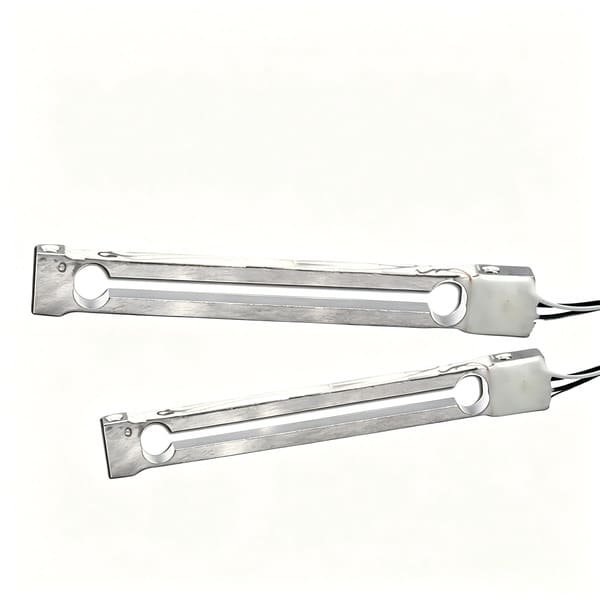

WST108 Miniature load cell for Jewelry scale
Aluminum alloy,surface anodic oxidation treatment,silicone rubber seal;
Application:Pocket scales, Jewelry scale and other miniature electronic weighing equipment.
SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST108 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 20,30,50,100,200(g) | Dimensions | 70*9*5mm |
| Accuracy Class | 0.05%F.S | Material | Aluminum alloy |
| Comprehensive Error | 0.05%F.S | Temp. Effect on Zero | ±2%F.S/10℃ |
| Rated Output | 0.5±30%mV/V | Operating Temp. Range | -10～+40℃ |
| Zero Balance | ± 0.1mV/V | Excitation, Recommended | ≤6VDC |
| Linearity Error | ±0.05%F.S | Safe Overload | 150%F.S |
| Repeatability Error | ±0.05%F.S | Insulation Resistance | ≥2000MΩ( 50VDC) |
| Hysteresis Error | ±0.05%F.S | Cable | 4 Color PVC Wires |
| Creep | ±0.05%F.S/2min | Cable Length | φ0.6×100mm |
| Input Resistance | 1130±20Ω | Ingress Protection | IP65 |
| Output Resistance | 1000±10Ω | Wiring Code | Exc+:Red Exc-:Black |
| Temp.Effect on Span | ±0.05%F.S/10℃ | ||
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
The core sensor in commercial price-computing scales and kitchen scales. Low-profile metal-alloy body accepts off-center loads with little deflection.
Low capacity multiple capacity options
Battery-powered pocket balances, jewellery scales and portable weighing tools fit the WST108 into compact housings without sacrificing stability.
OIML-grade reading
Inline force feedback for medical infusion pumps, laboratory force-test fixtures and small press-in assemblies — anywhere a low-capacity accurate load read is needed.
IP-rated sealed
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST108 | — | This page | Current selection |
| WST112 | 10Kg 20kg 30kg 40kg | Micro load cell | Alternative model in the same class |
| WST111 | 5,10,20,30,40,50(kg) | Micro load cell | Alternative model in the same class |
| WST110 | 100,200,300,500,750(g) | Micro load cell | Alternative model in the same class |
| WST109 | 300,500,750,1000,2000,3000,5000(g) | Micro load cell | Alternative model in the same class |
| WST107 | 3,5,10,15,20,25,30,40,50(kg) | Micro load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST108 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST108 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
