factory-direct spoke type load cell, built to the application-specific capacity and accuracy your project requires.
The WST501 is a spoke type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

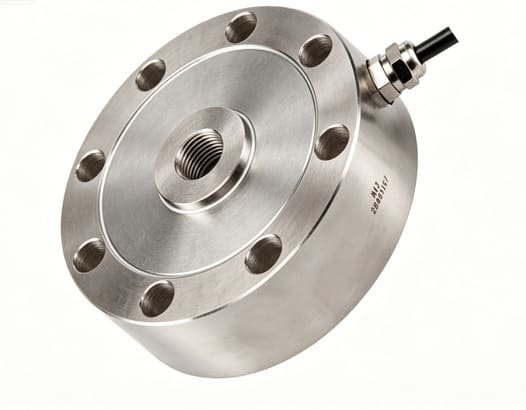

WST501 silo weighing system or press machine use spoke type compression load cell, The pancake load cell features and applications are as follows:

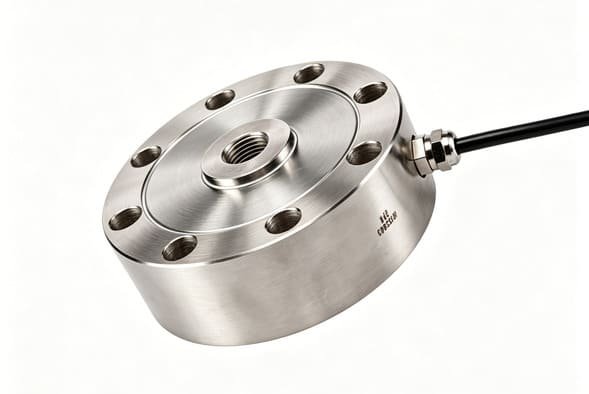

The spoke type load cell features low height, good rigidity, high accuracy, and strong anti-offset capacity.
The through hole load cell is widely used in belt scales, hopper scales, warehouse scales, charging buckets, material mechanics testing machine, labor safety testing equipment, etc.
Complete technical parameters, as delivered from the factory.
| WST501 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 0.5-200Ton | Material | Alloy steel or stainless steel |
| Rated Output | 2.0±0.004mv/v | Ingress Protection | IP66 |
| Application | press machines, silo weighing system, Tank weighing system, and other smart projects | Comprehensive Precision | 0.05~0.1% FS |
| Sensitivity | 2.0 mV/V | Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS | Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ | Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±10 or 750±15 Ω | Output Resistance | 350± 3 or 750± 5 Ω |
| Insulation Resistance | ＞5000 MΩ | Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC | Load Cell Mode Of Connection | Input+: Red |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Wheel-end dynamometer rigs use the WST501 as the radial load element to characterise suspension, brake and cornering performance at the hub.
Radial load only
Replace a tension / compression spoke on bicycle, motorcycle and powersports wheels with the WST501 for live wheel-load data without instrumentation legs.
Spoke-fit form
Laboratory chassis dynos and road-load simulators pair two or more WST501 units to reconstruct real-world vertical and lateral wheel loads.
Matched pairs
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST501 | — | This page | Current selection |
| WST505 | 120-400KN | Spoke type load cell | Alternative model in the same class |
| WST504 | 0.3-100Ton | Spoke type load cell | Alternative model in the same class |
| WST503 | 30N-1.5KN | Spoke type load cell | Alternative model in the same class |
| WST502 | 1-470on | Spoke type load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST501 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST501 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
