The WST505 is a spoke type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

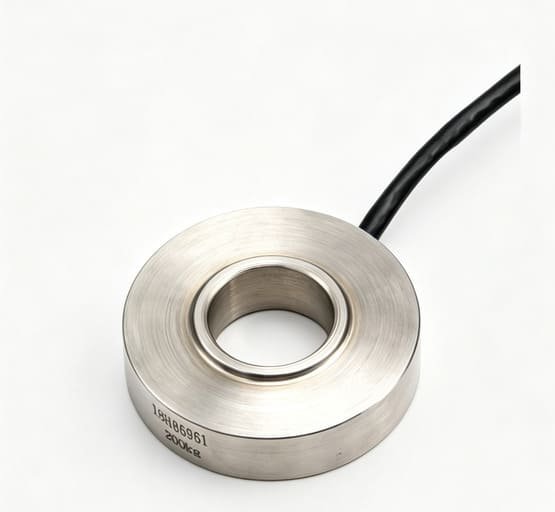

WST505 customized through hole Washer Type compression load cell force sensor, This load cell is customized model, The size could depend on clients request. High stability and reliability. Applicable to: measurement and control system of testing machine and other force value.
Complete technical parameters, as delivered from the factory.
| WST505 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 120-400KN | Material | Alloy steel or stainless steel |
| Rated Output | 1.5±0.1mv/v | Accuracy Class | ±0.1%F.S |
| Ingress Protection | IP66 | Input Resistance | 735±35Ω |
| Sensitivity | 1.5±0.1mV/V | Output Resistance | 700±3Ω |
| Comprehensive error(%F.S) | 0.1%F.S | Insulation Resistance | ≥2000MΩ |
| Creep | ±0.1%F.S/30min | Excitation, Recommended | 5~12VDC |
| Non-linearity | ±0.05%F.S | Operation temp.range | -20~+70℃ |
| Hysteresis | ±0.05%F.S | UItimate overload | 120%F.S |
| Repeatability | ±0.05%F.S | Temp. Effect on Zero | ±0.03%F.S/10℃ |
| Temp.effect on span | ±0.03%F.S/10℃ | Cable | Φ5 * 2 0 0 0 m m |
