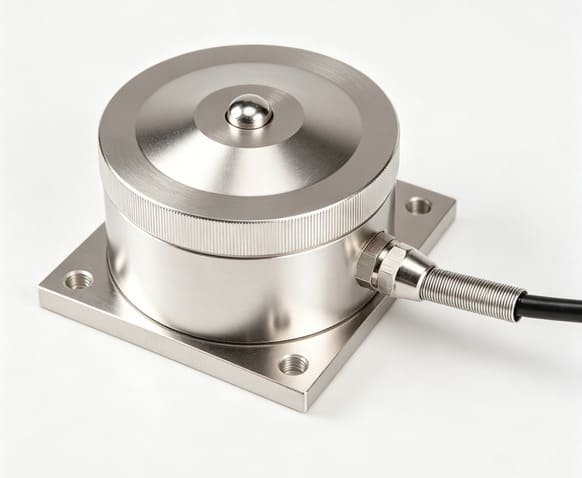

The WST503 is a spoke type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.
WST503 batching scale or belt scale use compression type load cell, Alloy steel material; Standard output signal can be optional, like 4-20mA,0-5V etc; Suitable for electronic belt scale, batching scale, etc weighing system.
Complete technical parameters, as delivered from the factory.
| WST503 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 30N-1.5KN | Material | Alloy steel or stainless steel |
| Rated Output | 2.0mv/v | Ingress Protection | IP66 |
| Application | press machines, batching scale, belt scale, and other smart projects | Comprehensive Error | ±0.05～0.1%F.S |
| Excitation, Recommended | 10VDC | Safe Overload | 150%F.S |
| Zero Balance | ±1%F.S | Ultimate Overload | 200%F.S |
| Creep | ±0.05%F.S/30min | Insulation Resistance | ≥5000MΩ(50VDC) |
| Input Resistance | 380±10Ω | Cable | 4-Wire Shielded Cable |
| Output Resistance | 350±3Ω | Cable Length | <5t,3m;≥5t,6m |
| Temp. Effect on Output | ±0.05%F.S/10℃ | Temp. Effect on Zero | ±0.05%F.S/10℃ |
| Wiring Code | Exc+: Red Exc-:Black | Operating Temp.Rang | -20～+65℃ |
