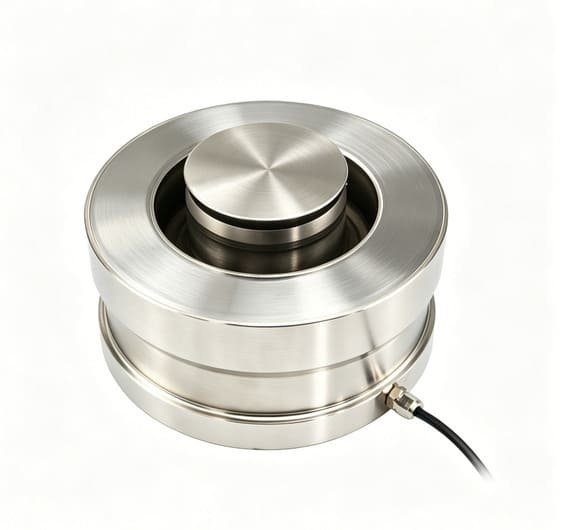

The WST502 is a spoke type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

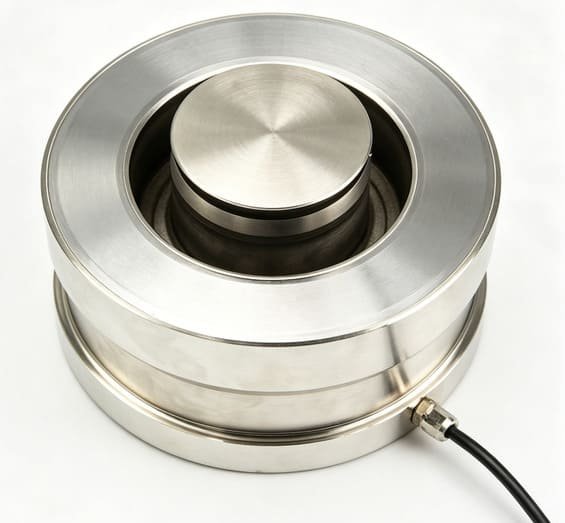

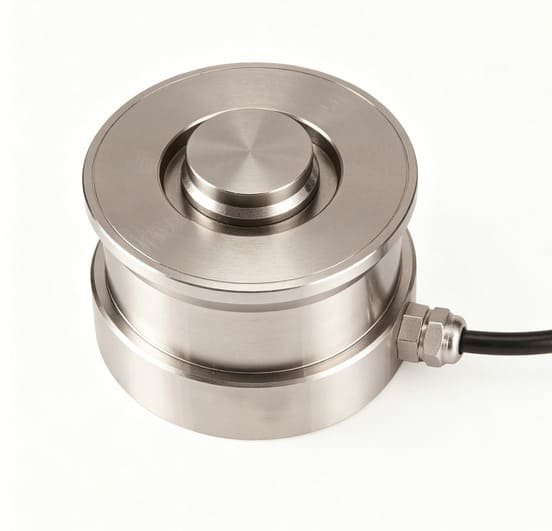

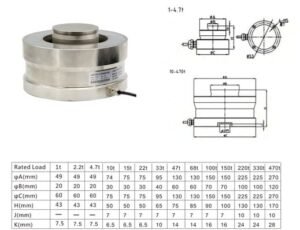

WST502 press machines or silo weighing system uses compression type load cell, This kind load cell mainly for big capacity use, Strong anti-bias-load capacity.
Complete technical parameters, as delivered from the factory.
| WST502 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 1-470on | Material | Alloy steel or stainless steel |
| Rated Output | 2.85±0.1mv/v | Ingress Protection | IP68 |
| Application | press machines, silo weighing systems, Tank weighing systems, and other smart projects | Comprehensive Error | ±0.05~±0.1%F.S |
| Excitation, Recommended | 10VDC | Safe Overload | 150%F.S |
| Zero Balance | ±0.1%F.S | Ultimate Overload | 300%F.S |
| Creep | ±0.05%F.S/30min | Insulation Resistance | ≥5000MΩ(50VDC) |
| Input Resistance | 4450±100Ω or 1450±10Ω | Cable | 4-Wire Shielded Cable |
| Output Resistance | 4010±0.5Ω or 1402±5Ω | Cable Length | 1t～15t,150t～470t:5m |
| Temp. Effect on Output | ±0.05%F.S/10℃ | Temp. Effect on Zero | ±0.05%F.S/10℃ |
| Compensated Temp. Range | -10～+40℃ | Wiring Code | Exc+:Red;Exc-:Black |
| Operating Temp.Rang | -30～+70℃ | ||
