The WST507 is a column type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.

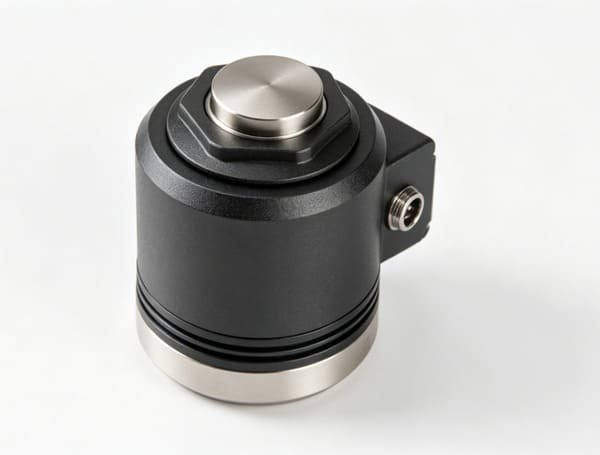

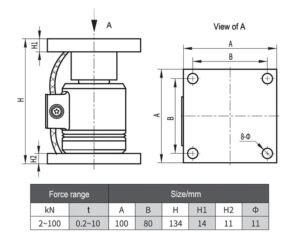

WST507 truck scale use column type load cell transducer, Small size, easy to install. The comprehensive precision of the load cell is high.The single column load cell can choose weighing module or built-in amplifier, which can be applied to a variety of weighing occasions.
Complete technical parameters, as delivered from the factory.
| WST507 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 2~100 kN | Material | Alloy Steel |
| Accuracy Class | 0.05% FS | Rated Output | 2.0 mV/V |
| Ingress Protection | IP67 | Comprehensive Precision | 0.05% FS |
| Sensitivity | 2.0 mV/V | Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS | Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ | Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±10 Ω | Output Resistance | 350± 3 Ω |
| Insulation Resistance | ＞5000 MΩ | Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC | Load Cell Mode Of Connection | Input+: Red |
