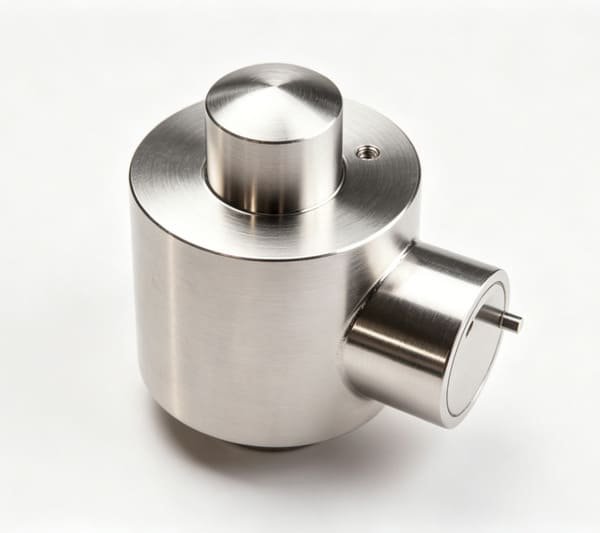

WST510 Column type load cell, Wide force range, strong anti-overload capability. Widelyused in pharmaceutical and chemical, coal metallurgyelectronic truck scales, railway scales, storage scalestanks and other large tonnage measuring equipment.
| Technical Parameter | |
| Rated load | 100~500kN |
| Comprehensive Precision | 0.03%FS |
| Sensitivity | 2.0mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±1%FS |
| Temperature Effect On Zero | ±0.3% FS/10℃ |
| Temperature Effect On Output | ±0.3% FS/10℃ |
| Operating Temperature Range | -20℃~+65℃ |
| Input Resistance | 750±50Ω |
| Output Resistance | 700±5Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
