factory-direct column type load cell, built to the application-specific capacity and accuracy your project requires.

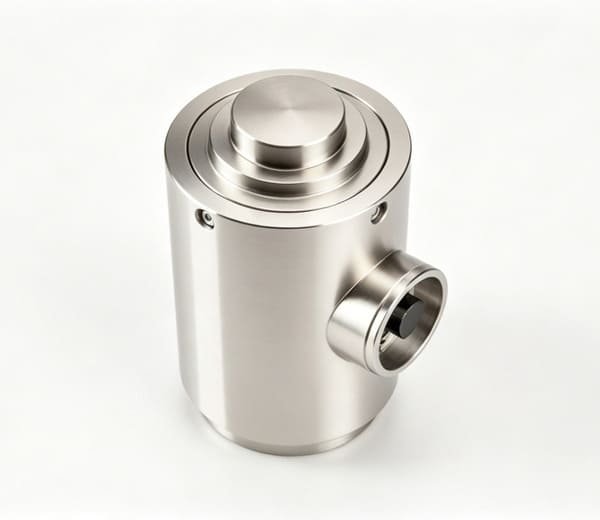

The WST508 is a column type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.
WST508 truck scale or tank weighing system use column type compression load cell and mounting kits, Wide range, strong anti-overload capability. These column type load cell are widely used in pharmaceutical and chemical, coal metallurgy, electronic truck scales, railway scales, storage scales, tanks and other large tonnage measuring equipment.
Complete technical parameters, as delivered from the factory.
| WST508 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 150~3000 kN | Material | Alloy Steel or stainless steel |
| Accuracy Class | 0.05~0.1% FS | Rated Output | 2.0 mV/V |
| Ingress Protection | IP68 | Comprehensive Precision | 0.05~0.1% FS |
| Sensitivity | 2.0 mV/V | Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS | Temperature Effect On Zero | ±0.03% FS/10℃ |
| Temperature Effect On Output | ±0.03% FS/10℃ | Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±10 Ω | Output Resistance | 350± 3 Ω |
| Insulation Resistance | ＞5000 MΩ | Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC | Load Cell Mode Of Connection | Input+: Red |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Heavy-duty weigh-in-motion and static truck scales where the WST508's column geometry concentrates load directly on the measuring element for stable reading.
multiple capacity options capacity
Multiple WST508 units mounted on tank feet form a complete silo / hopper weighing system with 3- or 4-point summation boxes available.
Tank kit optional
Concrete batching, asphalt plants and bulk-material dosing rely on the WST508 for repeatable accuracy under constant impact and vibration.
OIML-grade accuracy
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST508 | — | This page | Current selection |
| WST511 | 30/40/50Ton | Column type load cell | Alternative model in the same class |
| WST510 | 100~500kN | Column type load cell | Alternative model in the same class |
| WST509 | 2~100 kN | Column type load cell | Alternative model in the same class |
| WST507 | 2~100 kN | Column type load cell | Alternative model in the same class |
| WST506 | 5-450Ton | Column type load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST508 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST508 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.

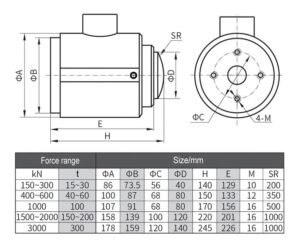

Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
