factory-direct column type load cell, built to the application-specific capacity and accuracy your project requires.

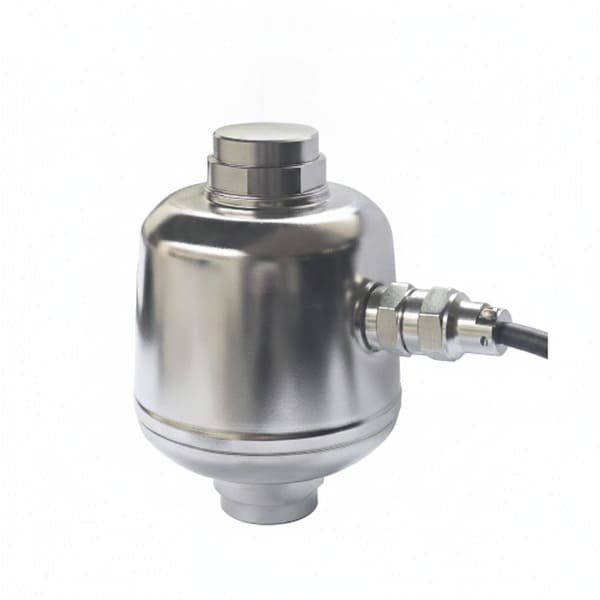

The WST511 is a column type load cell. All figures on this page come from the factory parameter sheet — what you read here is what ships.
Contact our engineers for the complete datasheet and design-in support.
WST511 truck scale or silo use Canister Compression Load Cell, Column-type load cells, with their simple structure, large measuring range, high stability, and strong resistance to off-center loading, have become the preferred solution in the field of large-tonnage weighing. Their core applications are concentrated in scenarios such as truck scales, tank weighing, and rail scales, making them an irreplaceable key component in industrial weighing and trade settlement.
FEATURES
Columnar Structure: Employs a cylindrical or square-column elastomer design, with the force direction aligned with the elastomer’s axis, resulting in a simple and compact structure.
High Stiffness Design: The elastomer boasts high stiffness, a high natural frequency, and excellent dynamic response performance.
Good Symmetry: Isotropic force distribution minimizes lateral force influence and enhances resistance to eccentric loads.
Good Sealing: Typically employs a fully welded sealing structure, achieving protection levels up to IP67/IP68, suitable for harsh environments.
SIZE(mm)
SPECIFICATION
Complete technical parameters, as delivered from the factory.
| WST511 Technical Specifications | |||
|---|---|---|---|
| Rated Load | 30/40/50Ton | Accruacy | C3 |
| Rated Output | 2.0±0.002mV/V | Material | Stainless steel |
| Ingress Protection | IP68 | Patameter | Units |
| Model No. | WST511 | Rated capacity(Emax) | t |
| Accruacy class 12) | C3 C4 | Min.dead oad | kg |
| Zero Balance | %of Emax | Repeatability Error | %of AL³ |
| Creep;30 minute | %of AL | Min.dead load output return(DR);30 min | %of AL |
| Min.dead load output | %of Emax/℃ | Temp.effect on Rated output 2) | %of AL/℃ |
| Compensated | ℃(F) | Temperature range Operating | -40 to +65 [-40 to +149] |
| Safe storage | -40 to +80 [-40 to +176] | Recommended | V AC/DC |
| Excitation voltage Maximum | 15 | Excitation | Ω |
| Terminal resistance Output | 1000±3 | Insulation resistance @50VDC | MΩ |
| Breakdown voltage | V AC | Seal type /IP rating | Hermetically welded /IP6869K |
| Safe | %of Emax | Load limit Ultimate | 300 |
| Spring element | Stainless steel | Enclosure | 304 stainless steel,laser welded |
| Anti-Rotation | Integral;Parallel dual-plane | Material Strain gauge | PEEK-1000 |
| Cable construction | Exterior braided armor covered with fireretardant PVC;PVC chemically resistant jacket,7mm O.D. ;4 Conductors triple shielded wires | Cable Length | m |
| Weight;approx | kg | Fatigue life | cycles @Emax |
| Deflection at Emax;approx | mm | Barometric pressure effect on Zero Output | Vmin/kPa |
Direct manufacturing with 10+ years of OEM/ODM experience — custom capacities, connectors, cable lengths and branding.
Send your capacity, application and annual quantity — pricing, datasheet and sample options within 12 hours on business days.
Every unit is factory calibrated and inspected before dispatch; parameters on this page reflect shipped goods.
Heavy-duty weigh-in-motion and static truck scales where the WST511's column geometry concentrates load directly on the measuring element for stable reading.
multiple capacity options capacity
Multiple WST511 units mounted on tank feet form a complete silo / hopper weighing system with 3- or 4-point summation boxes available.
Tank kit optional
Concrete batching, asphalt plants and bulk-material dosing rely on the WST511 for repeatable accuracy under constant impact and vibration.
OIML-grade accuracy
| Function | Wire Color |
|---|---|
| Excitation + (Exc+) | Red |
| Excitation − (Exc−) | Black |
| Signal + (Sig+) | Green |
| Signal − (Sig−) | White |
| Model | Capacity Range | Typical Application | Choose When |
|---|---|---|---|
| WST511 | — | This page | Current selection |
| WST510 | 100~500kN | Column type load cell | Alternative model in the same class |
| WST509 | 2~100 kN | Column type load cell | Alternative model in the same class |
| WST508 | 150~3000 kN | Column type load cell | Alternative model in the same class |
| WST507 | 2~100 kN | Column type load cell | Alternative model in the same class |
| WST506 | 5-450Ton | Column type load cell | Alternative model in the same class |
Not sure which model fits your design? Send us your platform size, target capacity and environment — our engineers will recommend the right sensor within 12 hours.
The WST511 meets standard industrial accuracy requirements. Full accuracy figures are listed in the specifications table above.
The WST511 is available in multiple capacity steps. For requirements outside the listed range, contact us — OEM capacities can often be arranged.
Protection class details are listed in the specifications table. Ask our engineers if your environment includes wash-down, immersion or corrosive conditions.
It provides a standard industry output signal, compatible with standard weighing indicators, transmitters and PLC analog inputs.
Standard wiring follows the industry convention: excitation + red, excitation − black, signal + green, signal − white. Always confirm against the datasheet shipped with your batch.
Use the inquiry form on this page or WhatsApp us directly — we reply within 12 hours on business days. Tell us your capacity step, target annual quantity and application, and we will send pricing, the datasheet PDF and sample availability. OEM/ODM options (custom labeling, connectors, cable lengths) are available on request.
Full dimension drawings, performance curves and calibration data — sent to your inbox within 12 hours.
Deepen your selection — application guides, accuracy-class comparisons and installation notes written for B2B engineers.
